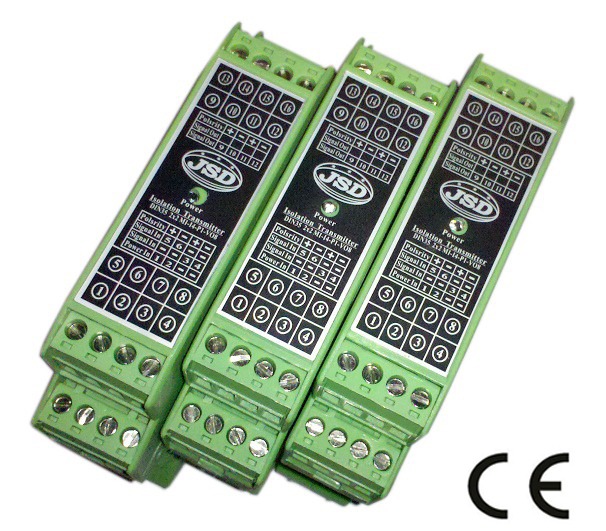

1-input-2-output analog signal isolation transmitter

Product Category: Isolation transmitter Product Description: 该隔离变送器采用光耦隔离设计,抗干扰能力更强,输出免校正,多端隔离,导轨安装用户直接接线使用即可,广泛应用仪器仪表的信号采集,隔离,转换等 Model: JSD TA-1002 Download: Input Signal: 4-20mA/0-20mA/0-10V/1-5V Output signal: 0-5V/4-20mA/0-20mA/0-3.3V Isolation Voltage: 3000VDC Isolation Type: 光耦隔离 Product accuracy: 0.1%,0.2% Size: 115*100*23mm Channel Numbers: 1-in-2-out Package: DIN35mm

                        1-input-2-output analog DC unidirectional optical signal isolation transmitter
Features:
◆ thin volume,low cost international standards DIN35mm rail mounting
◆four-terminal isolation (input, output, power supply and mutual isolation between channels)
◆High accuracy (0.1% F.S, 0.2% F.S)
◆Full scale range (<0.2% F.S)
◆High isolation voltage (2500VDC/60S)
◆low temperature drift (100PPM/℃)
◆wide industrial temperature range (-45~+85℃)
◆High reliablity (MTBF> 50 Wan hour)
◆Operating power supply (5VDC/12VDC/15VDC/24VDC multiple options)
◆International standard signal selection (0~5V/0~10V/1~5V/4~20mA multiple choice)

Application:
◆DC current/voltage signal isolation, conversion and amplification
◆industrial field signal isolation and long distance transmission without distortion
◆Analog signal ground interference suppression and analog isolation, acquisition, conversion, and remote
◆4~20mA/0~20mA/0~5V/0~10V sensor signal isolation, transformation and remote
◆instrumentation and sensor signal transceiver
◆power isolation monitoring industrial field
◆power monitoring, medical equipment isolation barrier
◆overcome interference between instrumentation equipment
 GENERAL DESCRIPTION:
     Shenzhen Jie Sheng Da Technology JSD OI active 1-input-2-output analog output unidirectional signal isolation transmitter is a Signal Conditioner with electrical insulation between input and output, , it can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、 PLC、PC or DCS. The product is isolated between power supply, input and output, the isolated voltage between them is up to 2500VDC .It is widely used in the industrial measurement systems, medical electronic equipment, electrical equipment etc. Adopting high optocoupler isolation technology  than the magnetic isolation transmitter has a stronger anti-EMC electromagnetic interference, free gain and zero adjustment, low temperature drift and good linearity, suitable for using vibration, damp industrial field, the international standard DIN35mm rail mounting, user-friendly installation .

Technical data: http://www.jsd-iae.com/down/20127111114274.pdf
