    1-input-3-output analog magnetic signal isolation transmitter

    2012-9-7 13:31:56  Clicks:2912
                          1-input-3-output magnetic signal isolation transmitter

    Features:
    ● Small size, low cost, international standards DIN35mm rail mounting
    ● three-port isolation (input, output and power supply )
    ● 1-input-3-output ,isolated between channels
    ● High accuracy (0.1% F.S, 0.2% F.S)
    ● High linearity (0.1% F.S)
    ● High isolation voltage (2500VDC/60S)
    ● Low temperature drift (35PPM / ℃)
    ● Wide Industrial class operation temperature (-45 ~ +85 ℃)
    ● High reliability (MTBF> 50 Wan hour)
    ● Power supply (5VDC/12VDC/15VDC/24VDC single power supply options)
    ● International standard signal input and output (0 ~ 5V / 1-5V/0 ~ 10V / 0 ~ ± 10V / 4 ~ 20mA / 0 ~ ± 20mA/0-100mV etc. optional)

    GENERAL DESCRIPTION:
    Jie Shengda Technology DIN35 1x3 MI-V(I)x-Px-V(I)Ox  active precision isolation transmitter is a Signal Conditioner with electrical insulation between input and output. It can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、 PLC、PC or DCS. The product is isolated between power supply, input and output, the isolated voltage between them is up to 2500VDC .It is widely used in the industrial measurement systems, medical electronic equipment, electrical equipment etc. Adopting high efficiency electromagnetism isolation technology to achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift.  Suitable for using in vibration, damp industrial field, the standard DIN35mm rail mounting for easy user installation.

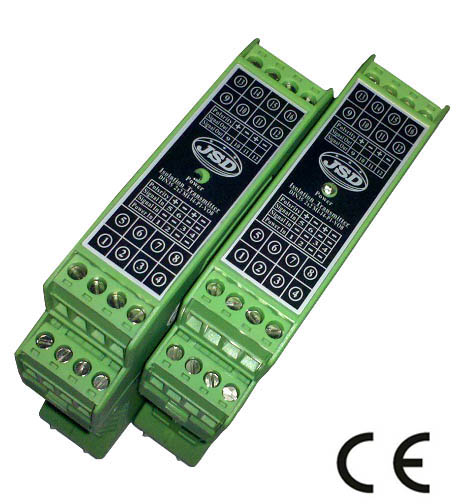

    picture:
    isolation transmitter
