3-input-3-output analog signal isolation transmitter
2012-12-25 19:54:20 Clicks:2618
| Product Category: |
Isolation transmitter |
| Product Description: |
捷晟达科技的三进三出模拟量隔离变送器具有高隔离,高线性度,性能稳定可靠,体积小,安装方便等特点. |
| Model: |
JSD TA-3003 |
Download: |
|
| Input Signal: |
4-20mA/0-10V/1-5V/0-5V/0-20mA |
Output signal: |
4-20mA/0-10V/0-3.3V/0-5V/0-20mA |
| Isolation Voltage: |
3000VDC |
Isolation Type: |
光耦隔离 |
| Product accuracy: |
0.1%,0.2% |
Size: |
115*100*23 |
| Channel Numbers: |
3 in 3 out |
Package: |
DIN35mm |
|
|

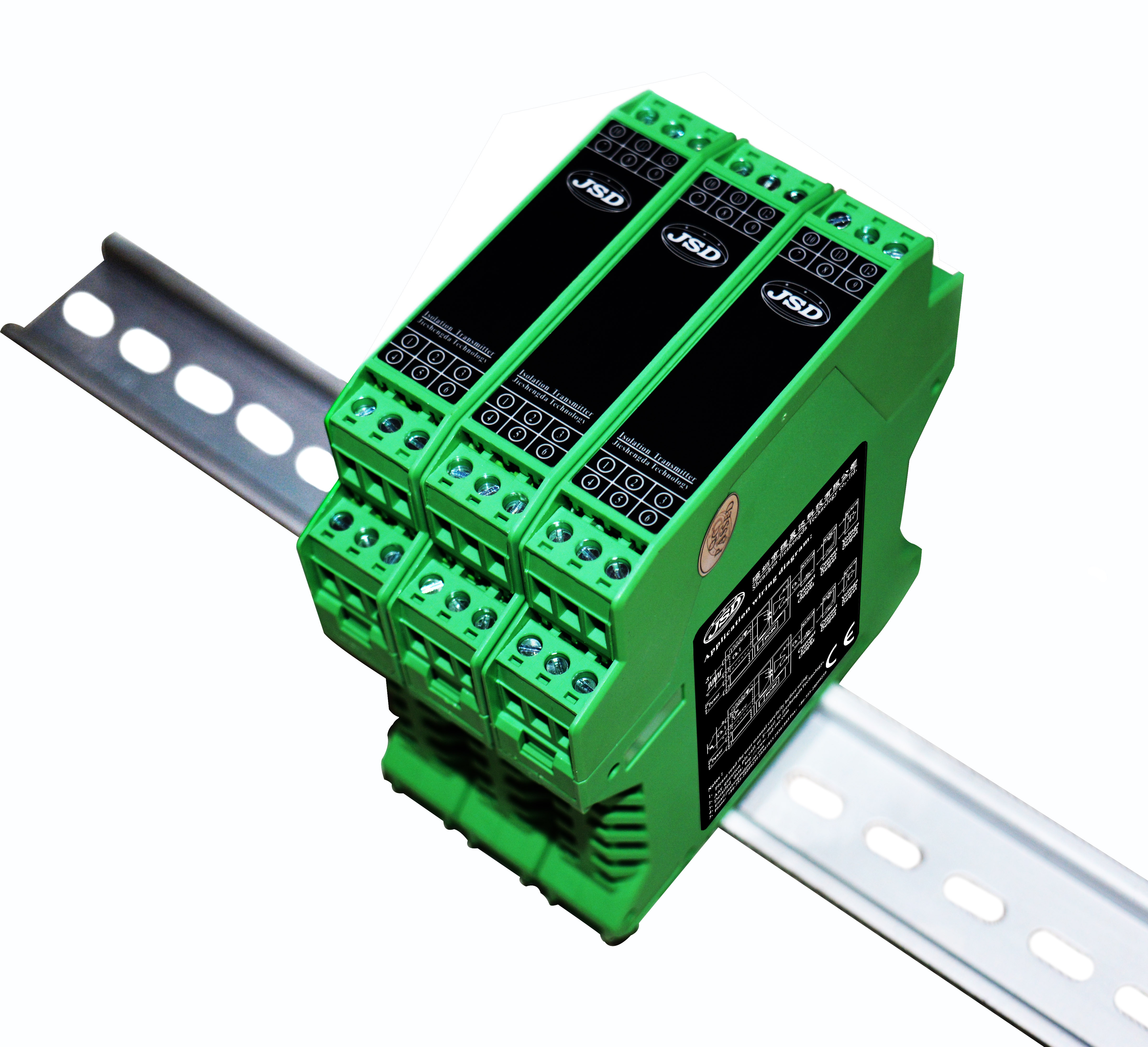

3-input-3-output analog DC voltage (current) signal isolation transmitter
Features:
● thin volume, low-cost international standards DIN35mm rail mounting
● four-terminal isolation (input, output, power supply and mutual isolation between channels)
● three-channel input, three-channel output, mutual isolation between channels, isolation voltage up to 2500VDC
● High accuracy (0.1% F.S, 0.2% F.S)
● Full scale range (<0.2% F.S)
● High isolation voltage (3000VDC/60S)
● Very low temperature drift (100PPM/℃)
● industrial temperature range (-45-+85 ℃)
● product performance and reliable (MTBF> 50 Wan hour)
● Operating power supply (5VDC/12VDC/15VDC/24VDC multiple options)
● International standard signal selection (0-5V/0-10V/1-5V/4-20mA/0-20mA/0-10mA multiple choice)
Application:
● DC current/voltage signal isolation, conversion and amplification
● industrial field signal isolation and long distance transmission without distortion
● Analog signal ground interference suppression and analog isolation, acquisition, conversion, and remote
● 4-20mA/0-20mA/0-10mA/0-5V/1-5V/0-10V/0-3.3V sensor signal isolation, transformation and remote
● instrumentation and sensor signal transceiver
● power isolation monitoring industrial field
● power monitoring, medical equipment isolation barrier
● overcome interference between instrumentation equipment
GENERAL DESCRIPTION:
JIE Sheng da Technology JSD TA-3003 active 3-in-3-out analog signal isolation transmitter is a signal conditioner with electrical insulation between input and output, it can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、PLC、PC or DCS. The product is isolated between power supply, input and output, the isolated voltage between them is up to 3000VDC .It is widely used in the power isolation, monitoring and control of industrial site, power monitoring, medical electronic equipment, analog signal isolation and acquisition etc. Adopting optical isolation technology, compared with the electromagnetism isolation transmitter has better anti-EMC electromagnetic interference capability.it is available to keep high output accuracy, good linearity and low temperature drift.
Details download: http://www.jsd-iae.com/down/20121225213650681.pdf

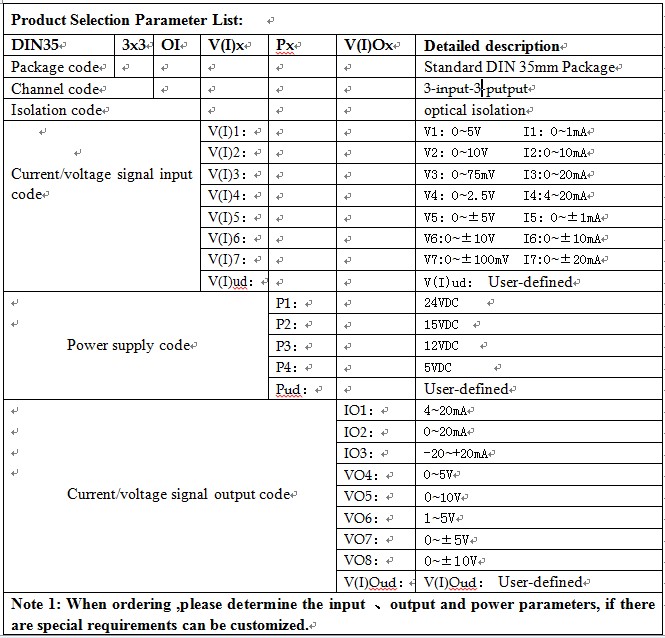

isolation transmitter selection list:
isolator selection example：
example1：input1：0-20mA； input 2：0-20mA； input 3：0-20mA； output1:4-20mA；output 2:4-20mA；output 3:4-20mA； power supply:24VDC；model NO：DIN35 3x3 OI-I3-P1-IO1
example2：input1：0-5VDC； input 2：0-5VDC； input 3：0-5VDC； output1: 0-10VDC； output 2: 0-10VDC；output 3: 0-10VDC；power supply：5VDC；model NO：DIN35 3x3 OI-V1-P4-VO5
