1-input-1output analog DC unidirectional voltage (current) optical signal isolation transmitter

                           1-input-1output analog DC unidirectional voltage (current) optical signal isolation transmitter

Features:
●Small size, low cost, international standards DIN35mm rail mounting
●Three-port isolation (input, output, power supply and mutual isolated between channels)
●Passed CE Certificate
●High accuracy (0.1% F.S, 0.2% F.S)
●High linearity (0.1% F.S)
●High isolation voltage (2500VDC/60S)
●Low temperature drift (35PPM/℃)
●Wide operation temperature (-45~+85℃)
●High reliability (MTBF>50 Wan hour)
●Power supply (5VDC/12VDC/15VDC/24VDC)
●International standard signal input and output 0~5V/0~10V/1~5V/4 ~ 20mA/0~20mA, etc.)

Applications：
●  DC current/voltage signal isolation, conversion and amplification
●  Industrial field signal isolation and long distance transmission without distortion
●  Analog signal ground interference suppression and analog isolation, acquisition, conversion, and long-distance transmission
● 4~20mA/0~20mA/0~5V/0~10V sensor signal isolation, transformation and long-distance transmission
●  Instrumentation and sensor signal transceiver
●  power isolation monitoring industrial field
●  power monitoring, medical equipment isolation barrier
●  Overcome the interference between various devices and  acquisition, isolation, transformation analog signal

General Description:
JIE Shengda Technology DIN35 1x1 OI-V(I)x-Px-V(O)x active single-channel high accuracy analog signal isolation transmitter is a signal conditioner with electrical insulation between input and output, it can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、PLC、PC or DCS. The product is isolated between power supply, input and output, the isolated voltage between them is up to 2500VDC .It is widely used in the power isolation, monitoring and control of industrial site, power monitoring, medical electronic equipment, analog signal isolation and acquisition etc. Adopting optical isolation technology, compared with the electromagnetism isolation transmitter has better anti-EMC electromagnetic interference capability.

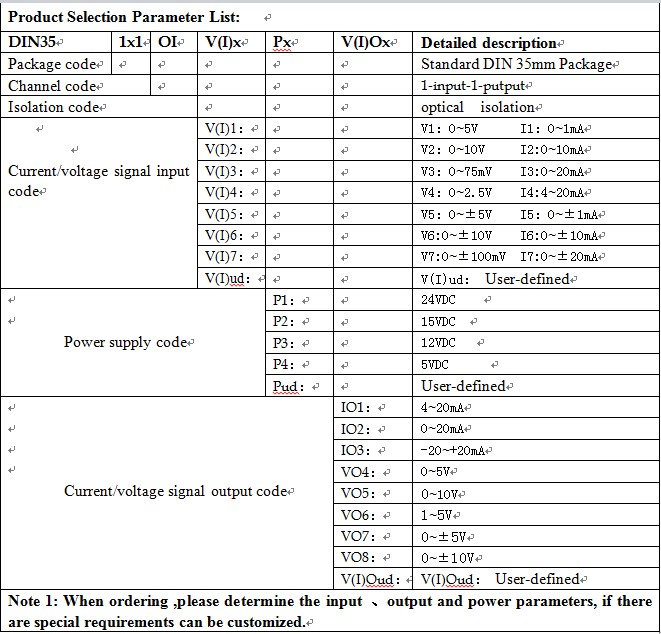

isolation transmitter selection list:

Selection example:

Example 1: signal input 1:0-5V; signal output 1:0-10V; Power supply : 12VDC; model NO: DIN35 1x1 OI-V1-P3-VO5

Example 2: signal input 1:4-20mA; signal output 1:4-20mA; Power supply: 24VDC;model NO: DIN35 1x1 OI-I4-P1-IO1

More detailed data contact Jie Sheng Technology Co., Ltd. Tel :0755 -28,099,259
