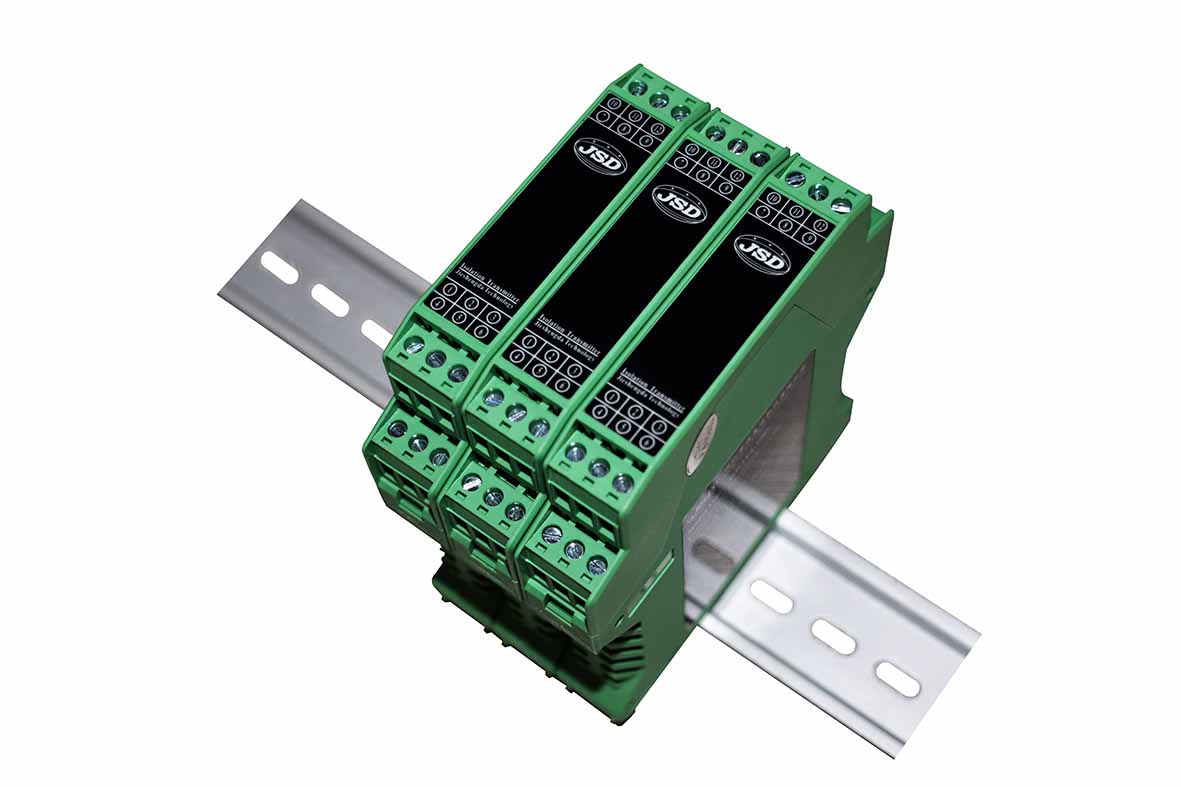

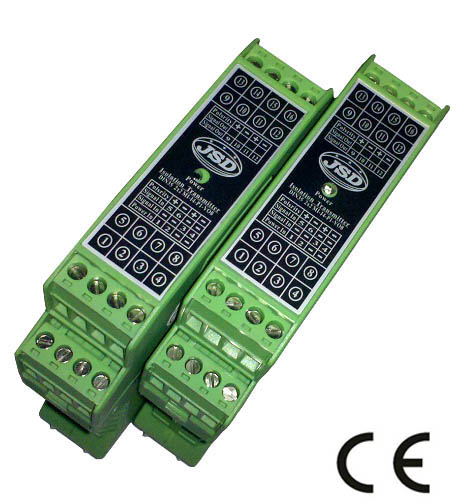

1-input-1-output resistance signal/electronic ruler(displacement signal)isolation transmitter series

Product Category: Isolation transmitter Product Description: 采集电阻,电位器,电位计,电子尺,位移信号并隔离转换成标准模拟量4-20mA或0-10V等直流信号 Model: JSD TAR-1001 Download: Input Signal: 0-500R/0-1KR/0-5KR/0-10KR Output signal: 0-5V/0-10V/0-20mA/4-20mA Isolation Voltage: 3000VDC Isolation Type: Optical isolation Product accuracy: 0.1%,0.2% Size: 115*100*17.5 Channel Numbers: 1-in-1-out Package: DIN35mm

               1-input-1-output resistance signal/electronic ruler(displacement signal)isolation transmitter series

Features:
◆ Small size, low cost, international standards DIN35mm rail mounting
◆ three-port isolation (input, output, operating supply)
◆ High accuracy (0.1% F.S, 0.2% F.S)
◆ High linearity (0.1% F.S)
◆ High isolation voltage (2500VDC/60S)
◆ Low temperature drift (35PPM / ℃)
◆ Wide Industrial class operation temperature (-45-+85 ℃)
◆ High reliability (MTBF> 50 Wan hour)
◆ Power supply (5VDC/12VDC/15VDC/24VDC single power supply options)
◆ Resistor or potentiometer signal input（0~50Ω/0~100Ω/0~200Ω/0~500Ω/0~1KΩ/0~2KΩ/0~5KΩ/0~10KΩ, etc.）
◆ international standard signal output: 0~5V /0~10V/ 0~±5V/ 0~±10V/ 4~20mA/ 0~20mA /0~10mA ,etc.

GENERAL DESCRIPTION:
JIE Sheng Technology DIN35 1x1 OI-RPV (I) Ox Series linear Electronic scale/ Resistance signal (Displacement signal) Isolation transmitter is an analog signal isolation transmitter, which is used to collect, isolate, amplify and convert the analog signal from resistance, linear electronic scale, angular displacement sensor input, it can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、 PLC、PC or DCS. The product is isolated between power supply, input and output , the isolated voltage is up to 3000VDC , The isolation transmitter input voltage constant drive for three-wire sensor devices and instrumentation, it is widely used in potentiometer signal isolation, acquisition and transformation; industrial field precision displacement, angle measurement; electronic signals into standard analog signal; It is widely used in the displacement, angle measurement and alarm; industrial field signal isolation and remote transmission, analog signal ground interference suppression, industrial measurement systems, medical electronic equipment, electrical equipment etc. Adopting high efficiency Optocoupler isolation technology to achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift.

data download: http://www.jsd-iae.com/down/201211616320737.pdf
