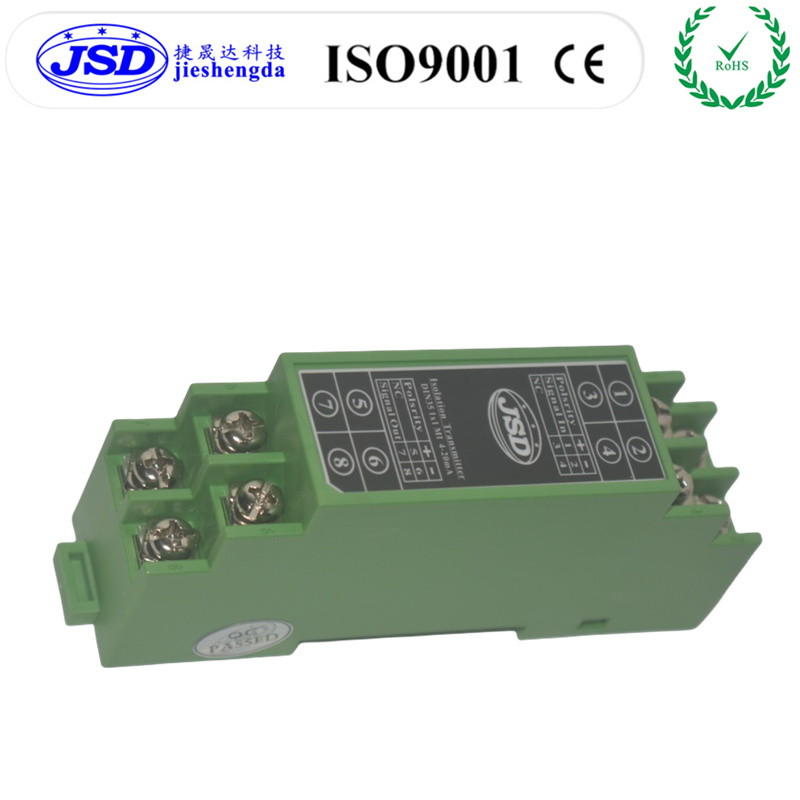

1-in-1-out analog two-wire 4-20mA input loop powered isolation transmitter

2016-8-25 9:32:09 Clicks:16

Product Category:	Isolation transmitter
Product Description:	Jieshengda Technology JSD TAW-1001D-100L-F series isolation transmitter is a Acquisition Analog two-wire 4-20mA current signal,And provide the sensor with a working power supply
Model:	JSD TAW-1001D-100L-F	Download:

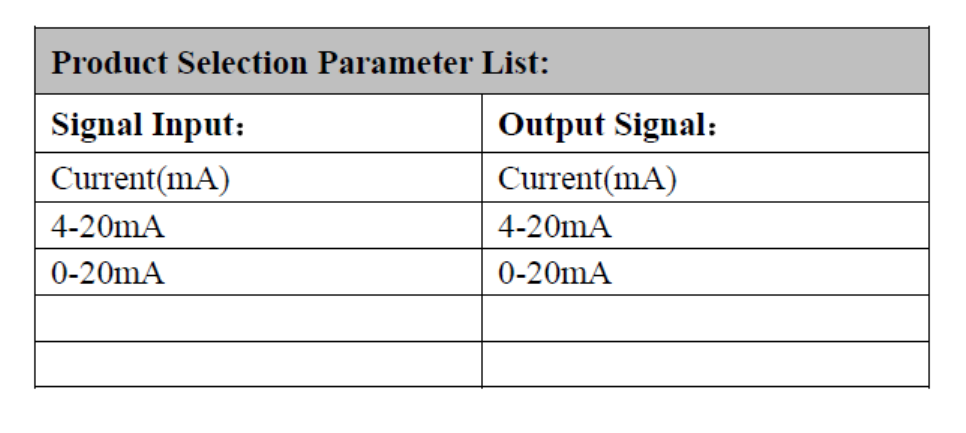

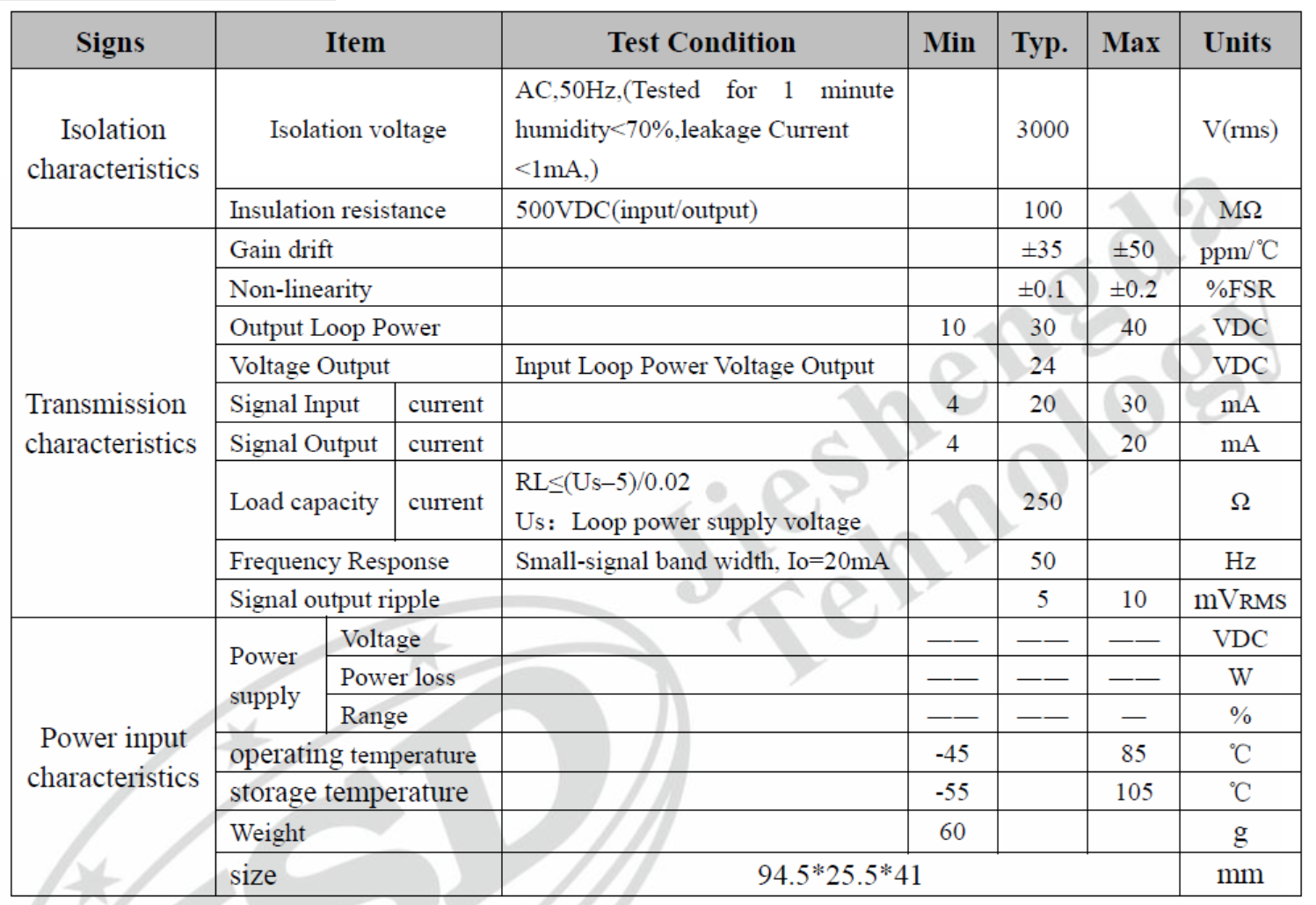

Input Signal:	4-20mA/0-20mA	Output signal:	0-20mA/4-20mA
Isolation Voltage:	3000VDC	Isolation Type:	Magentic isolation

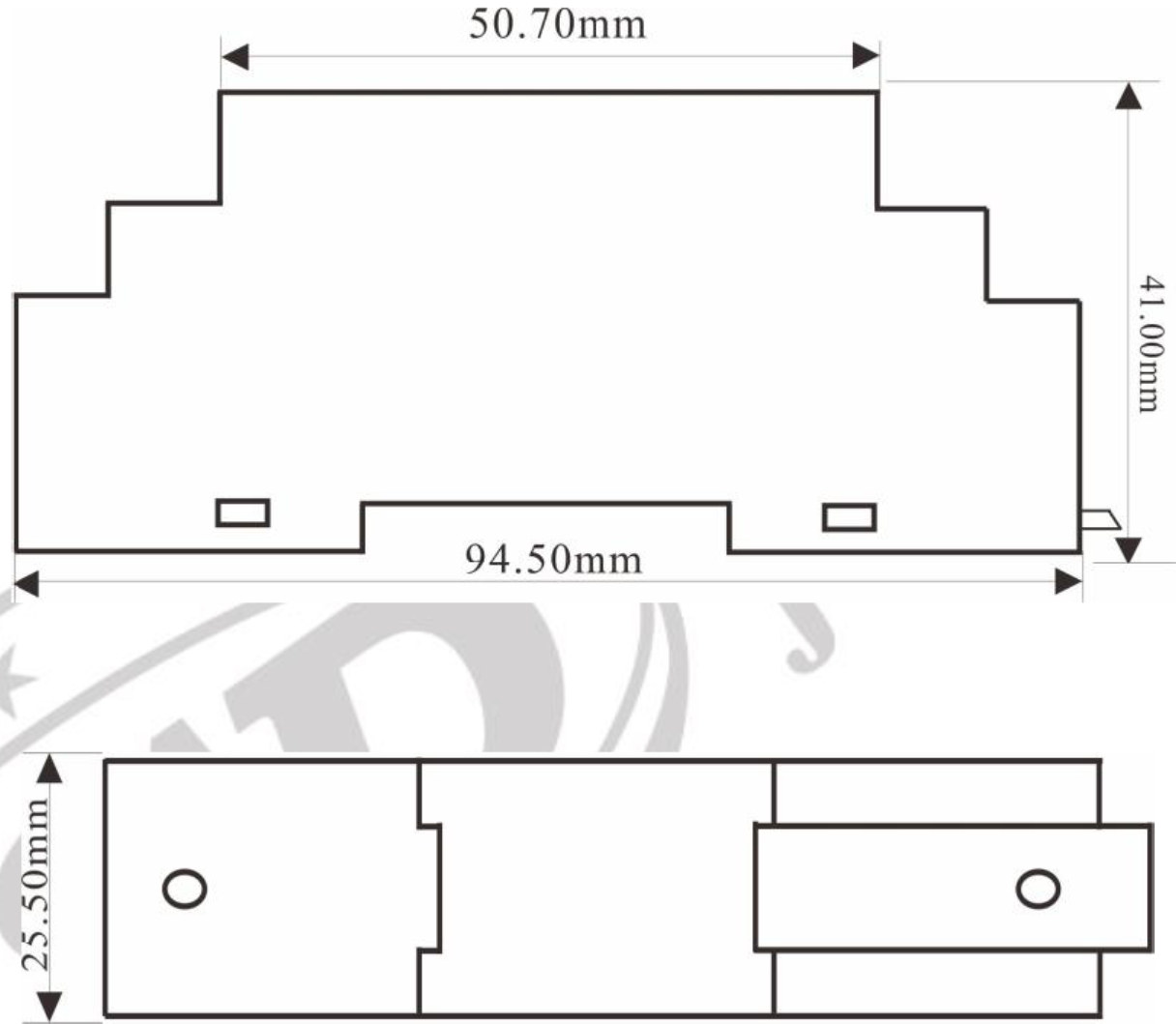

Product accuracy:	0.2%;0.3%	Size:	94.525.541

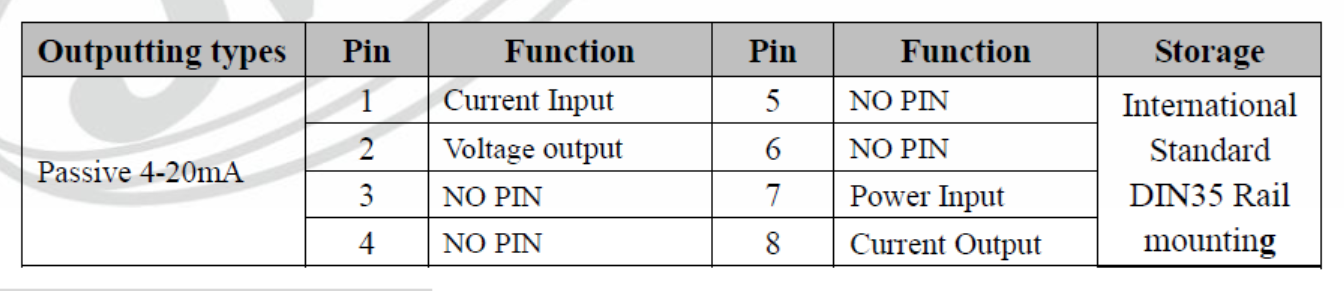

Channel Numbers:	1-in-1-out	Package:	DIN35mm

Single-channel two-wire Passive 4-20mA Loop Power isolation transmitter

Features:

◆Low cost, small size, international standard DIN35 rail mounting

◆3000VDC isolation voltage between input and output

◆Operation requires no external power supply, no external components

◆4-20mA input/4-20mA output

◆Industrial temperature range: -45~+85 ℃

◆High accuracy: 0.3%, 0.4%,0.5%

◆High linearity (non-linearity <0.1%)

◆Output Loop Power Supply Voltage (10-30VDC)

Application:

◆Analog signal data isolation、acquisition

◆Industrial field signal isolation

◆Long-distance lossless transmission

◆Analog signal ground interference suppression

◆4-20mA isolated signal transmission

◆Supply power to the front-end two-wire equipment

◆Instrumentation and sensor signal transceiver

◆Transducer , large generators, equipment EMC interference suppression

◆Power monitoring, medical equipment isolation safety barrier

General description:

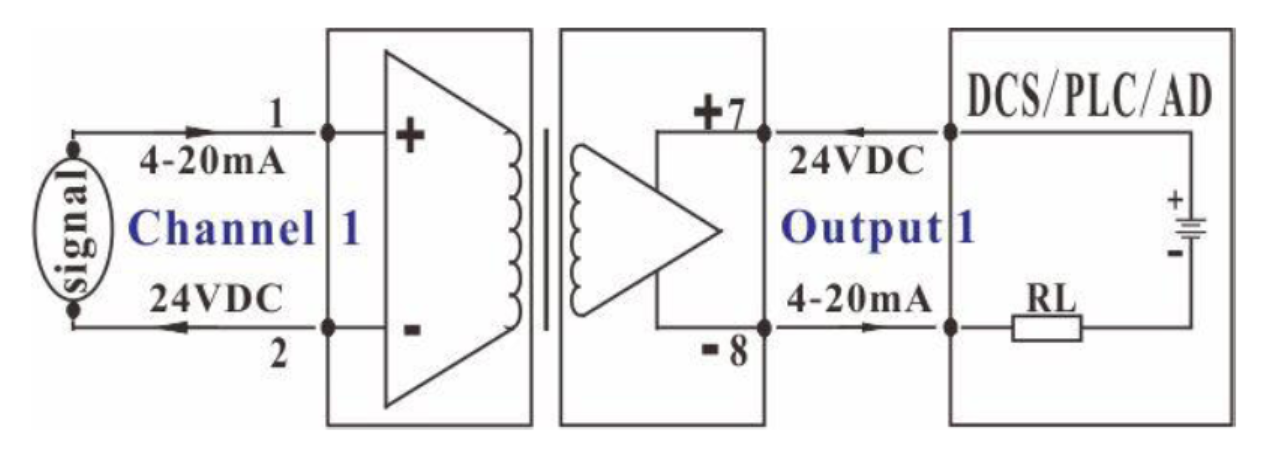

Jieshengda Technology JSD TAW-1001D-100L-F series isolation transmitter is a two-wire loop powered isolation transmitter distributor, It adopts electromagnetic isolation technology, supply power to the two-wire inputting devices, effective solution to the current signal isolation depends on the power supply and achieve the 4-20mA standard signal isolation and transmission, Can be matched with a variety of instruments analog signal input interface (PLC, DCS systems, etc.). Analog signal input with overcurrent protection, Can effectively protect the module and the post-stage circuit; addition, the module's isolation voltage between input and output can be up to 3000VDC. it is available to keep high output accuracy, good linearity and low temperature drift. Suitable for using in vibration, damp industrial field.

Jieshengda Technology JSD TAW-1001D-100L-F series isolation transmitter adopt international standard DIN35mm rail mounting for easy user installation, the user just wire can achieve two-wire analog passive 4-20mA signal isolation, transmission and distribution conversion, and to achieve long-term distortion of the industrial field signal isolation and conversion without any external components, and can achieve signal transmission long-term lossless or multi-channel isolation transmitter please choose JSD TAW-2002D-100L-F,JSD TAW-3003-100L-F,JSD TAW-4004-100L-F series.
