AC-DC(AC/DC)signal isolation transmitter

Product Category: Isolation Amplifier Product Description: 捷晟达科技的交流转直流信号隔离变送器模块为高度集成电路设计,性能稳定可靠,体积小,阻燃封装设计,国际标准SIP12脚,广泛应用于工业自动化控制. Model: JSD MI-AC-Px-V(I)Ox Download: Input Signal: 0-1VAC Output signal: 0-5V/0-10V/1-5V/0-20mA/4-20mA Isolation Voltage: 2500VDC Isolation Type: 磁电隔离 Product accuracy: 0.1级、0.2、0.5级； Size: 32*8.9*14.2mm Channel Numbers : 1-in-1-out Package: SIP12

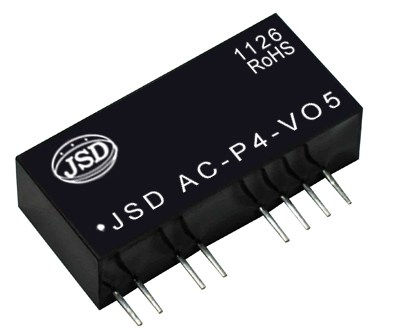

JSD MI-AC Series AC-DC (AC/DC) signal isolation transmitter

Features:
● low cost, ultra-small size, stable and reliable
● GB standard SIP12 chip design, meet UL94-V0 flame retardant standard
● just add multi-turn potentiometer to achieve zero and gain adjustment
● Operating power and signal input and signal output 2500VDC isolation
● Power Supply: 5V, 12V, 15V, 24V DC single power supply, etc.
● International standard signal output: 0~5V/0~10V/1~5V/0~10mA/0~20mA/4~20mA, etc.
● Accuracy class: 0.1, 0.2,0.5;
● Full range of high linearity (non-linearity <0.1%)
● Industrial temperature range: -45~+85 ℃

Applications:
● AC signal acquisition and conversion
● AC small signal amplification and conversion
● High-precision measurement and monitoring of power distribution
● power isolation monitoring industrial site
● power monitoring, medical equipment isolation barrier
● industrial field signal isolation and distance transmission without distortion
● External form a single-phase or polyphase transformer isolation transmitter

Overview:
JSD MI-AC-Px-V(I)x Series AC-DC(AC-DC) signal isolation transmitter IC, is an AC signal is collected and converted into a corresponding analog linear DC signal mixing circuit. The isolation transmitter IC integrates a set of multi-channel micro-power, high isolation DC-DC power supply and a set of high-precision AC-DC signal conversion circuit. The group of high-precision AC-DC circuit can be sensor to the 0~1Vrms (50~60Hz) AC signal is converted into a proportional analog voltage to international standards and current signals, (eg :4-20mA/0-10mA/0-20mA /0-5V/0-2.5V/1-5V/0-10V) isolation transmitter module IC uses SMD technology and new quarantine measures to isolate the power supply and the transmitter IC's work input signal/output isolation voltage up to 2500VDC external transformer can be formed after the single-phase or multi-phase transmitter isolation between input and output signals to achieve isolation. Products in power remote monitoring, instrumentation, medical equipment, industrial automation control and other fields widely used.

Technical details: http://www.jsd-iae.com/down/201345224129261.pdf
