2-input-2-output analog DC voltage(current)signal isolation transmitter

Product Category: Isolation transmitter Product Description: 双路模拟量4-20mA/0-10V信号隔离,转换,采集及无失真远传. Model: JSD TA-2002 Download: Input Signal: 0-5V/0-10V/0-20mA/4-20mA Output signal: 0-5V/0-10V/0-20mA/4-20mA Isolation Voltage: 3000VDC Isolation Type: optical isolation Product accuracy: 0.1%,0.2% Size: 115*100*23 Channel Numbers: 2-in-2-out Package: DIN35mm

                         2-input-2-output analog DC voltage (current) signal isolation transmitter
Features:
● thin volume, low-cost international standards DIN35mm rail mounting
● three-port isolation (input, output, power supply and isolated between channels)
● Dual-channel input, dual output, channel isolation between
● High accuracy (0.1% F.S, 0.2% F.S)
● Full scale range (<0.2% F.S)
● High isolation voltage (2500VDC/60S)
● Very low temperature drift (100PPM / ℃)
● industrial temperature range (-45~+85 ℃)
● product performance and reliable (MTBF> 50 Wan hour)
● Operating power supply (5VDC/12VDC/15VDC/24VDC multiple options)
● International standard signal selection (0~5V/0~10V/1~5V/4~20mA multiple choice)
Application:
● DC current/voltage signal isolation, conversion and amplification
● industrial field signal isolation and long distance transmission without distortion
● Analog signal ground interference suppression and analog isolation, acquisition, conversion, and remote
● 4~20mA/0~20mA/0~5V/0~10V sensor signal isolation, transformation and remote
● instrumentation and sensor signal transceiver
● power isolation monitoring industrial site
● power monitoring, medical equipment isolation barrier
● overcome interference between instrumentation equipment
GENERAL DESCRIPTION:

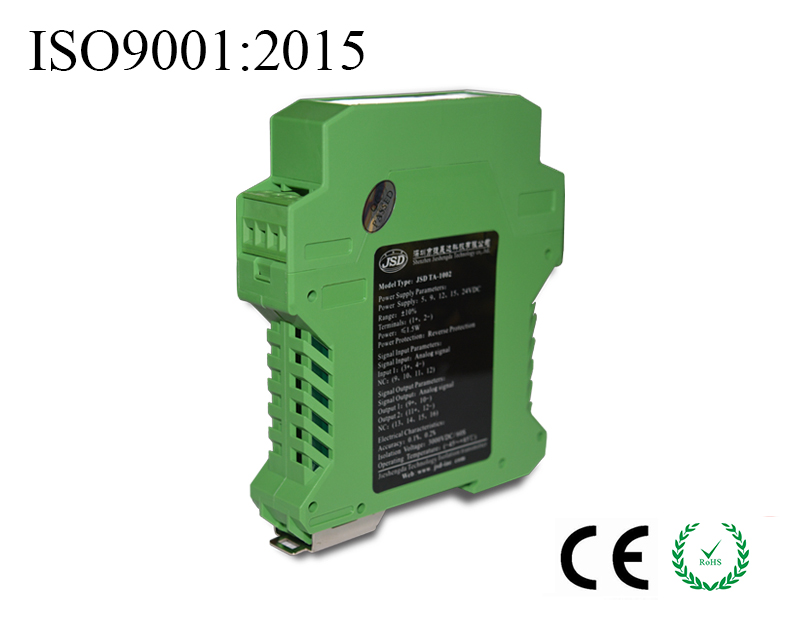

     JSD TA-2002  active 2-input-2-output signal isolation transmitter is a signal conditioner with electrical insulation between input and output, it can receive a variety of analog, it can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、 PLC、PC or DCS. The product is isolated between power supply, input and output, the isolated voltage is up to 2500VDC .It is widely used in the industrial measurement systems, medical electronic equipment, electrical equipment etc. Adopting high efficiency electromagnetism isolation technology to achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift. The analog signal isolation transmitter using the new optocoupler isolation technology, than the magnetic isolation transmitter has a stronger anti-EMC electromagnetic interference , free gain   adjustment, low temperature drift and good linearity, suitable for use in vibration, damp industrial field, It adopts the international standard DIN35mm rail mounting, user-friendly installation .
Details download: http://www.jsd-iae.com/down/2012122521333967.pdf

isolation transmitter:

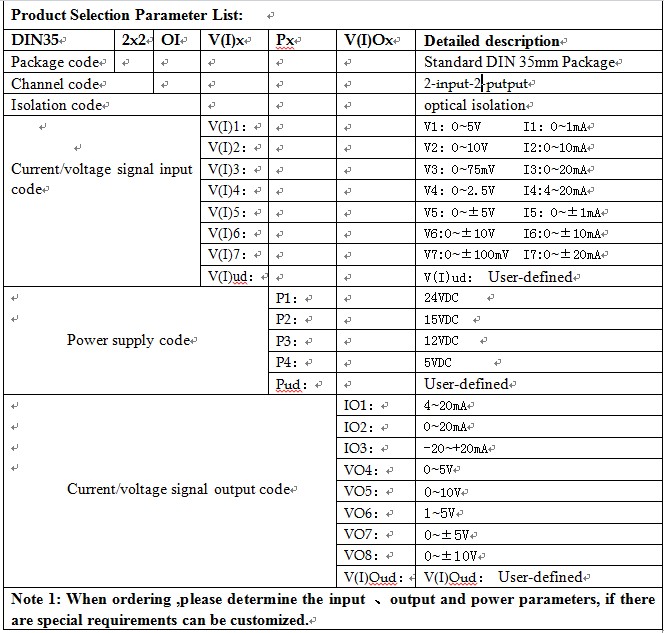

selaction example：
example 1：input 1：0-20mA；input 2：0-20mA；output 1:4-20mA；output 2:4-20mA；
power supply:24VDC；model NO：DIN35 2x2 OI-I3-P1-IO1

example 2：input 1：0-5VDC；input 2：0-5VDC；output 1: 0-10VDC；output 2: 0-10VDC；
power supply：5VDC；model NO：DIN35 2x2 OI-V1-P4-VO5
