                               Analog signal to RS485 or RS232 digital signal, A/D converter   JSD AD11

Features:
● Analog signal acquisition, isolated RS-485/232 output
● 12-bit AD converter, testing accuracy>0.1%
●Can be remotely reconfigured for modules accuracy by RS-485/232 Interface
●Three-port isolation (input/output/power supply): 3000VDC /60s
● Wide operating power supply: 8 ~ 32VDC
● High reliability, easy programming and installation
● International standard DIN35mm rail mounting for easy centralized wiring
● Can Program setting module address, baud rate , etc.
● Supports Modbus RTU
● Low cost, small size modular design

Applications:
● Analog signal testing/monitoring/control
● RS-485 remote I / O, data acquisition
● Intelligent building control, security engineering and other applications
● RS-232/485 industrial automation control system
● Industrial field signal isolation and long-term transmission
● Monitoring equipment operation
● sensor signal measurement
●Industrial data acquisition and recording
● medical, industrial product development
● 4-20mA/0-5V or 1-5V signal acquisition

GENERAL DESCRIPTION:
JSD AD11 series products realize the signal acquisition between sensor and host, to measure analog signals.JSD AD11 series products can be applied to RS-232/485 bus industrial automation control system, 4-20mA / 0-5V signal measurement, monitoring and control , 0-75mV ,0-100mV and other small-signals measurement and signals isolation and long-term industrial transmission and so on. Products include power supply isolation, signal isolation, linearization, A/D conversion and RS-485 serial communication. Each serial interface can connect up to 255 pieces JSD AD11 Series modules, communication using ASCII code or MODBUS RTU communication protocol, and its instruction set compatible with the ADAM modules, baud rate can be set by the code, with other manufacturers control module hang in the same RS-485 bus for easy programming
JSD AD11 series is based on SCM intelligent monitoring and control system, all of the users set configuration information such as Calibration value, address, baud rate, data format, checksum and status are stored in non-volatile memory EEPROM.
JSD AD11 series products according to industry standard design and manufacture .They are three-port isolation(input, output and power supply),and the isolation voltage between them is up to 3000 VDC, JSD AD11 series products have better Anti-interference ability, high reliability and wide operating Temperature Range (- 45℃～+85℃。)

data download: http://www.jsd-iae.com/down/2012919215852347.pdf

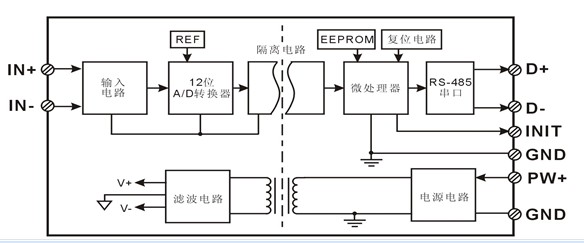

data acquisition module simplified diagram:

Selection example:

Example 1: Model NO: JSD AD11-I4-485 represents 4-20mA signal input and RS-485 interface output

Example 2: Model NO: JSD AD11-V1-232 represents 0-5V signal input and  RS-232 interface output
