Pressure-strain bridge Isolation amplifier module IC

Product Category: Isolation Amplifier Product Description: 该隔离放大器把压力,拉力,重力信号采集后变换成标准的4-20mA/0-10V/0-20mA/0-5V模拟量信号,DIP24脚封装,隔离电压高达2500VDC,广泛应用变桥式信号采集放大等. Model: JSD OI-Bx-Px-V(I)Ox Download: Input Signal: 1mV/V,2mV/V,0-10mV/0-30mV/0-75mV Output signal: 0-5V/0-10V/4-20mA/0-20mA/1-5V Isolation Voltage: 2500VDC Isolation Type: 光耦隔离 Product accuracy: 0.1%,0.2% Size: 33*33*10.16mm Channel Numbers : 1-in-1-out Package: DIP24

                        Pressure-strain bridge Isolation amplifier module IC
Features:
●low cost, small size, DIP24 package with UL94-V0 flame retardant standard
● Achieve Zero and gain adjustment by Adding multi-turn potentiometer
●Three-port isolation (input, output and power supply)
●Isolation voltage (2500VDC/60s)
●Power supply：5V、12V、15V、24V
● 0~2mV/0~10mV/0~20mV/0~±10mV/0~±20mV/0~100mV Etc. differential voltage signal input, conversion and amplification
● Converting the pressure, tension, gravity sensor signal into international standard current or voltage signals, such as 4-20mA/0-20mA/0-10V/1-5V/0-5V
● Provides 5VDC or 10VDC reference voltage to the  Pressure-strain bridge  sensor
● High accuracy:（0.1% F.S,0.2% F.S）
● Full scale high linearity (non-linearity <0.1%)
● strong anti-interference and Anti-high-frequency signal interference
● Wide operation temperature (-45~+85 ℃)
Applications:
●weighing sensor signal acquisition amplification and conversion
●Analog signal ground interference suppression and signal isolation, acquisition and remote transmission
● Industrial field signal remote transmission without distortion
● non-power signal transmission
● power isolation monitoring industrial field
● Analog signal data isolation, acquisition and conversion
● Industrial field signal isolation and conversion, and remote transmission without distortion
● overcome EMC electromagnetic interference in industrial field
● Various sensor interface match (acquisition, amplification, remote transmission)

General Description:
Jie ShengDa Technology JSD OI-Bx-Px-V(I)Ox Series Pressure-strain bridge isolation amplifier is a hybrid integrated circuit by witch the differential signal proportionally isolate amplifier, convert into  DC signal output , The pressure-strain bridge isolation amplifier IC provides a set of efficient micro-power voltage reference source to the pressure sensor , and output an international standard current (voltage) signal ,The chip integrates a set of multi-channel high-isolation DC / DC micro power supply and several high-performance signal isolation converter to supply for the internal amplifier circuit, its four-port isolation(input, power supply, output and power distribution),and the isolation voltage between them is up to 2500 VDC, JSD OI-Bx-Px-V(I)Ox series Isolation Amplifiers has strong anti-electromagnetic EMC interference capability, Isolation amplifier using a photoelectric isolation technology, compared to the magnetic isolation transform EMC appliance strong anti-interference and high anti-frequency signal space electromagnetic interference products widely used in electrical, instrumentation, medical equipment, weighing instruments, industrial automation and other industries fields.
JSD OI-Bx-Px-V (I) Ox series isolation amplifier products have PCB board soldering and standard DIN 35 rail mounting, rail mounting can achieve analog 1-input-1-output, the user simply by wiring can be used。
Product very easy to use, just add a 50KΩ multi-turn potentiometer ADJ correction, you can achieve signal isolation, transmission and transformation capabilities, and to achieve long-term signals without distortion transmission. The product simplifies the user's design, greatly improves the PCB board space utilization.

Detailed dowmload:

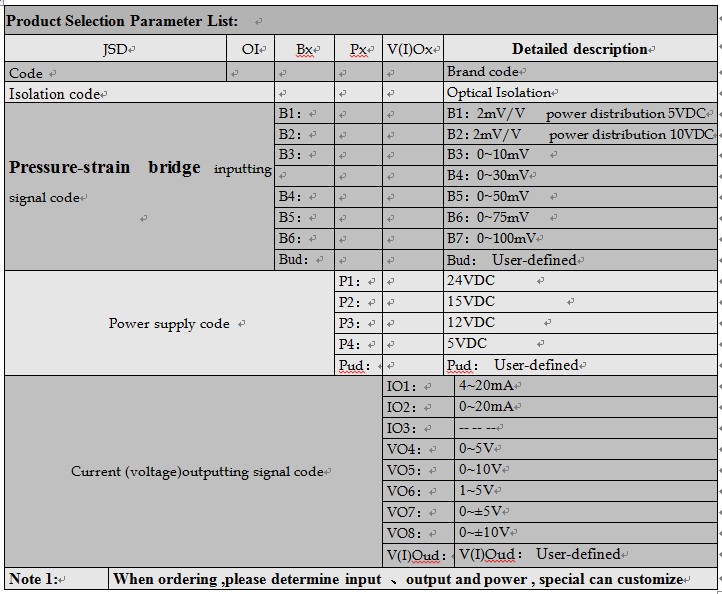

Selections list：

selection example:

example 1：input：2mV/V power distribution:5VDC； output：0-5V； power supply：5VDC；model NO：JSD OI-B1-P4-VO4

example 2：input：0-20mV；  output:4-20mA；  power supply：24VDC； model NO：JSD OI-Bud-P1-IO1

example 3：input：0-100mV； output:0-20mA；  power supply：24VDC； model NO：JSD OI-B6-P1-IO2
