2-in-2-out analog two wire 4-20mA isolation transmitter

Product Category: Isolation transmitter Product Description: 把模拟量两线制4-20mA信号采集,隔离,无失真远传给PLC,DCS采集系统 Model: DIN35 2*2 MI 4-20mA Download: Input Signal: 4-20mA/0-20mA Output signal: 0-20mA/4-20mA Isolation Voltage: 3000VDC Isolation Type: 磁电隔离 Product accuracy: 0.1%,0.2% Size: 94.5*41*25.5mm Channel Numbers: 2-in-2-out Package: DIN35mm

                   High-accuracy dual-channel analog 4-20mA passive isolation transmitter

Features:
◆ Small size, low cost, No correction directly use
◆ two-port isolation (input, output)
◆ 2-input-2-output Mutual isolation between channels
◆ High accuracy (0.1% F.S, 0.2% F.S)
◆ High linearity (0.1% F.S)
◆ High isolation voltage (2500VDC/60S)
◆ Low temperature drift (35PPM/℃)
◆ Low impedance (voltage drop <3V, 20mA)
◆ Wide Industrial class operation temperature (-45~+85℃)
◆ Wide voltage input (7.5V~32V)
◆ High reliability (MTBF>50Wan hour)
◆ Passed CE Certificate
◆ International standard signal input and output (4~20mA/0~20mA)

Application:
◆ DC current/voltage signal isolation, conversion and amplification
◆ Analog signal ground interference suppression and analog isolation, acquisition
◆ 4~20mA/0~20mA sensor signal isolation, transformation and signal distribution conversion
◆ instrumentation and sensor signal transceiver
◆ Two-wire primary/secondary instrumentation signal acquisition and isolation
◆ power isolation monitoring industrial site
◆ Analog signal data isolation, acquisition, conversion, and distance transmission
◆ Industrial field signal isolation and conversion, and distance transmission without distortion
◆ power monitoring, medical equipment isolation barrier
◆ overcome inverter, large motors, power equipment, acquisition systems, DCS and PLC Field interference

General Description:
Jie Shengda Technology DIN35 2x2 MI 4-20mA passive dual-channel analog signal isolation transmitter is a signal conditioner with electrical insulation between input and output, it can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、PLC、PC or DCS system. The product is isolated between power supply, input and output , the isolated voltage is up to 3000VDC .It is widely used in the industrial measurement systems, medical electronic equipment, electrical equipment etc. Adopting high efficiency electromagnetism isolation technology to achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift.

data download :http://www.jsd-iae.com/down/201210518421443.pdf

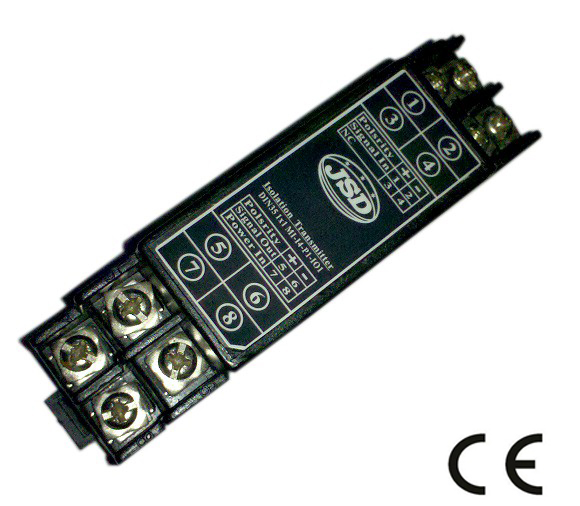

isolation transmitter picture:
