1-input-4-output analog DC voltage(current) signal optical isolation transmitter/isolator

Product Category: Isolation transmitter Product Description: Model: JSD TA-1004 Download: Input Signal: 0-5V/0-10V/0-20mA/4-20mA Output signal: 0-5V/0-10V/0-20mA/4-20mA Isolation Voltage: 3000VDC Isolation Type: O Product accuracy: 0.1%,0.2% Size: 115*100*23 Channel Numbers: 1-in-4-out Package: DIN35mm

                  1-input-4-output analog DC voltage (current) signal isolation transmitter
Features:
● Thin volume, low-cost international standards DIN35mm rail mounting
● Three-port isolation (input, output  and power supply ,isolated between channels)
● 1-input-four-output, mutual isolation between channels
● High accuracy (0.1% F.S, 0.2% F.S)
● High linearity (0.1% F.S)
● High isolation voltage (2500VDC/60S)
● Very low temperature drift (35PPM / ℃)
● Industrial temperature range (-45 ~ +85 ℃)
● Product performance and reliable (MTBF> 50 Wan hour)
● Power Supply (5VDC/12VDC/15VDC/24VDC multiple options)
● International standard signal selection (0 ~ 5V / 0 ~ 10V / 1 ~ 5V / 0 ~ 20mA / 4 ~ 20mA multiple choice)
Applications:
● DC current / voltage signal isolation, conversion and amplification
● Industrial field signal isolation and long distance transmission without distortion
● Analog signal ground interference suppression and analog isolation, acquisition, conversion, and remote
● 4 ~ 20mA / 0 ~ 20mA / 0 ~ 5V / 0 ~ 10V sensor signal isolation, transformation and remote
● Instrumentation and sensor signal transceiver
● Power isolation monitoring industrial site
● Power monitoring, medical equipment isolation barrier
● Overcome the interference between various devices and analog signal acquisition, isolation transmitter GENERAL DESCRIPTION:
      DIN35 1x4 OI-V(I)x-Px-V(I)Ox active 1-input-4output analog signal isolation transmitter is a signal conditioner with electrical insulation between input and output, it can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、PLC、PC or DCS. The product is isolated between power supply, input and output, the isolated voltage between them is up to 2500VDC .It is widely used in the industrial measurement systems, medical electronic equipment, electrical equipment etc. Adopting the new optocoupler isolation technology, than the magnetic isolation transmitter has a stronger anti-EMC electromagnetic interference, free gain and zero adjustment, low temperature,good linearity, suitable for using vibration, damp industrial field .
Details download: http://www.jsd-iae.com/down/2012122521239267.pdf

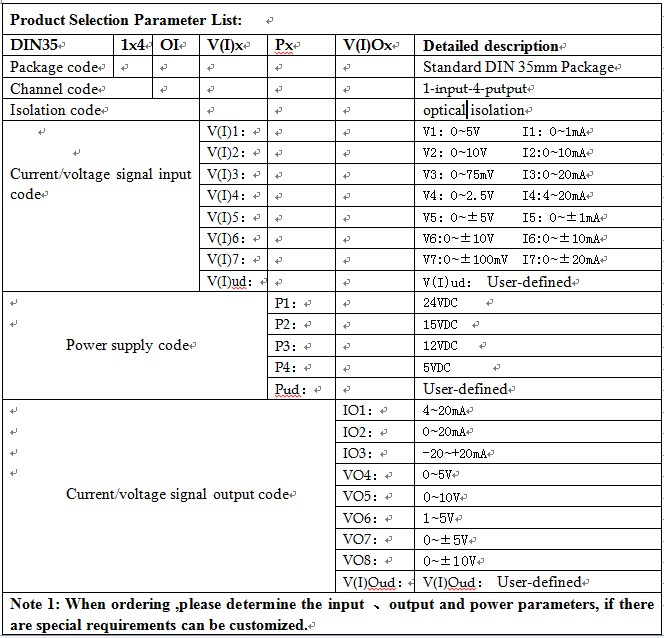

isolation transmitter selection list:

selection example：
example 1：input 1：0-20mA；output 1:4-20mA；output2:4-20mA；output3:4-20mA；
output 4:4-20mA；power supply :24VDC； model NO：DIN35 1x4 OI-I3-P1-IO1
例2：input1：0-5VDC； output 1: 0-10VDC； output 2: 0-10VDC；output3: 0-10VDC；
output4:0-10VDC；power supply：5VDC； model NO：DIN35 1x4 OI-V1-P4-VO5
