1-input-1output analog isolated power driver transmitter
2012-8-1 9:40:01 Clicks:2156
one in one out analog isolation power drive transmitter( large current isolation transmitter )
Features :
● conversion the international standard voltage/current signal into can drive solenoids, relays and other equipment needed for power conversion
● low cost international standards DIN35mm rail mounting for easy installation
● three -port isolation ( between input, output and supply isolated )
● Accuracy class (0.1% F.S, 0.2% F.S)
● High isolation voltage (2500VDC/60S)
● industrial temperature range (-45 ~ +85 ℃)
● product reliable performance(MTBF> 50 Wan hour)
● Power Supply (5VDC/12VDC/15VDC/24VDC single power supply )
● Standard signal input (0 ~ 5V / 0 ~ 10V / 4 ~ 20mA / 0 ~ 20mA , etc. Multiple choice )
● standard signal output (0 ~ 5V / 0 ~ 10V / 0 ~ 15V / 0 ~ 24V / 0 ~ 100mA / 0 ~ 200mA / 0 ~ 500mA / 0 ~ 1000mA / 0 ~ 2000mA)
Application:
● industrial field signal isolation and amplification
● Current signal amplification or enhance voltage signal drive capability
● solenoid valves, proportional valves linear driver
● Solenoid Linear Controller
● Electronic control valve drive
● electromagnetic drive coils or large power load
● Large current output and isolation
details download:
More detailed technical data , please contact technician or online customer service Isolated power driver Transmitter

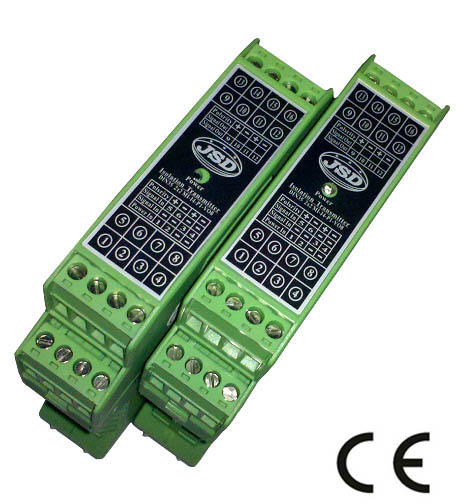

picture:
