1-input-4-output analog signal isolation transmitter

2012-9-7 8:33:36  Clicks:2374
Product Category: Isolation transmitter
Product Description: 用于传感器,变送器标准模拟量4-20mA/0-20mA/0-±10V/0-5V信号采集,变换,信号分配及无失真远传。
Model: DIN35 1*4 MI Download:
Input Signal: 0-5V/0-10V/0-20mA/4-20mA Output signal: 4-20mA/0-±10V/0-±20mA/1-5V
Isolation Voltage: 3000VDC Isolation Type: magnetic isolation
Product accuracy: 0.1%,0.2% Size: 115*100*23mm
Channel Numbers: 1-in-4-out Package: DIN35mm
一进四出模拟量信号隔离变送器

                           1-in-4-out analog signal isolation transmitter
Features:
● Small size, low cost, international standards DIN35mm rail mounting
● three-port isolation (input, output and power supply )
● 1-input-4-output ,isolated between channels
● High accuracy (0.1% F.S, 0.2% F.S)
● High linearity (0.1% F.S)
● High isolation voltage (2500VDC/60S)
● Low temperature drift (35PPM / ℃)
● Wide Industrial class operation temperature (-45 ~ +85 ℃)
● High reliability (MTBF> 50 Wan hour)
● Power supply (5VDC/12VDC/15VDC/24VDC single power supply options)
● International standard signal input and output (0 ~ 5V / 1-5V/0 ~ 10V / 0 ~ ± 10V / 4 ~ 20mA / 0 ~ ± 20mA/0-100mV etc.)

GENERAL DESCRIPTION:
JIE Shengda Technology DIN35 1x4 MI-V(I)x-Px-V(I)Ox  active 1-in-4-out high-accuracy isolation transmitter is a signal conditioner with electrical insulation between input and output. It can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、 PLC、PC or DCS. The product is isolated between power supply, input and output, the isolated voltage between them is up to 2500VDC .It is widely used in the industrial measurement systems, medical electronic equipment, electrical equipment etc. Adopting high efficiency electromagnetism isolation technology to achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift.  Suitable for using in vibration, damp industrial field, the standard DIN35mm rail mounting for easy user installation.

Application:
◆ DC current / voltage signal isolation, conversion and amplification
◆ industrial field signal isolation and long-distance transmission without distortion
◆ analog signal ground interference suppression and analog isolation, collecting
◆ 4 ~ 20mA / 0 ~ 20mA / 0 ~ 5V / 0 ~ 10V sensor signal isolation and conversion function
◆ instrumentation and sensor signal transceiver
◆ power isolation and control of industrial site
◆ power monitoring, medical equipment isolation barrier

data download:http://www.jsd-iae.com/down/201278234128227.pdf

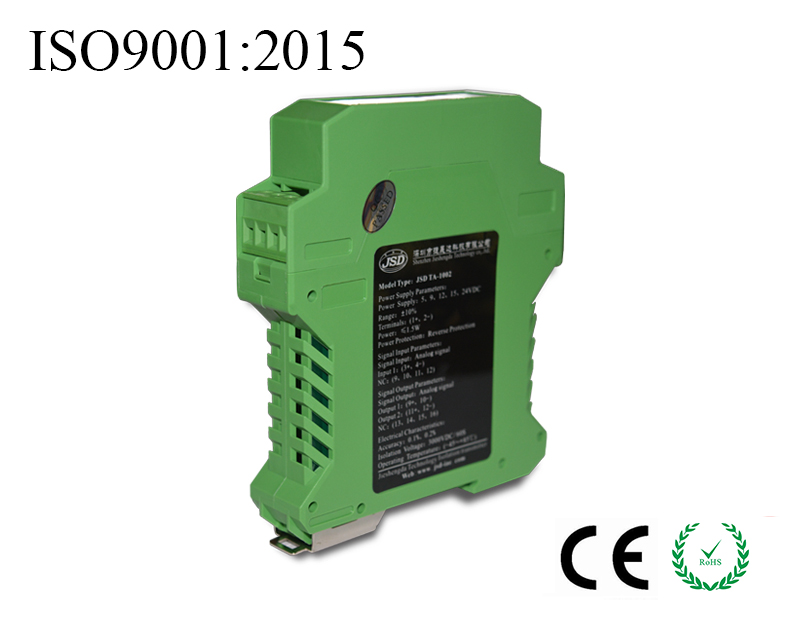

isolation transmitter picture:
