1000VDC isolated&unregulated fixed voltage input positive and negative dual voltage output DC-DC converter A series
2012-8-6 0:41:11 Clicks:2389
| Product Category: |
DC-DC converter |
| Product Description: |
定电压A系列DC-DC电源模块体积小,低成本,SMD贴片工艺,应用于电子设备,仪器仪表,安防,工控智能化等行业中. |
| Model: |
AxxxxS(D)-xW |
Download: |
|
| Input voltage: |
3.3/5V/9/12/15/24 |
Output Voltage: |
±3.3/±5/±9
±12/±15/±24 |
| Isolation Voltage: |
1000 |
Output Power: |
0.1W-2W |
| Product accuracy: |
5% |
Size: |
19.6*6.0*10
19.6*7.0*10
20.4*10.0*8.2 |
| Channel Numbers : |
正负电压双输出 |
Package : |
SIP7/DIP14 |
|
|
isolated&unregulated fixed voltage input positive and negative dual voltage output DC-DC converter A series
FEATURES
◆Small size,low cost
◆SIP/DIP PACKAGE
◆1KVDC Isolation
◆Temperature Range -40°C~+85°C
◆No Heat Sink Required
◆Industry Standard Pinout
◆RoHS Compliance
APPLICATIONS
AxxxxSD-xW Series are specially designed for applications where a single power supply is highly isolated from the
input power supply in a distributed power supply system on a circuit board.These products apply to
1、Where the power supply system distribution , the digital circuit isolation and voltage conversion
2、Where provide dual voltage power supply to op-amp circuit.
3、Where the voltage of the input power supply is fixed (voltage variation ≤±10%)
4、Where isolation is necessary between input and output (isolation voltage ≤1000VDC);
5、Where the regulation of the output voltage and the output ripple and noise are demanded.
data download:
Dimension diagram and PCB layout diagram:

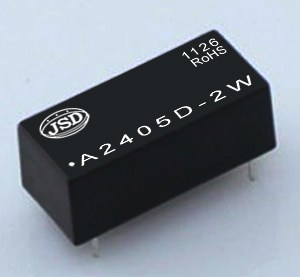

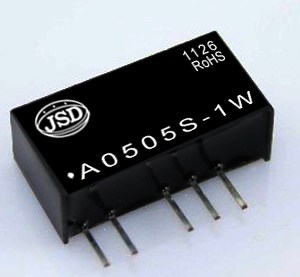

pcctures:
