6000VDC isolated&unregulated positive and negative dual output DC-DC converter G series
2012-7-20 22:01:10 Clicks:2258
FEATURES:
◆ Small size,low cost
◆ SIP7 Package
◆ 6KVDC Isolation
◆ Temperature Range -40°C ~ +85°C
◆ No Heat Sink Required
◆ Industry Standard Pinout
◆ RoHS Compliance
◆ Input voltage: 5VDC/9VDC/12VDC/12VDC/15VDC/24VDC
◆ output voltage :3.3VDC/5VDC/9VDC/12VDC/12VDC/15VDC/24VDC
◆ Product Power: 0.1 ~ 2W
APPLICATIONS:
◆ Where the RS-485/RS-232,digital isolation dedicated converter.
◆ Where the intelligent control, security facilities, electrical power isolation and transformation of Radio
◆ Where the power ground circulation suppress interference
◆ Where provide dual voltage power supply to op-amp circuit.
◆ Where the voltage of the input power supply is fixed (voltage variation ≤±10%)
◆ Where isolation is necessary between input and output (isolation voltage ≤6000VDC);
◆ Where the regulation of the output voltage and the output ripple and noise are demanded
data download:
PCB layout reference dimension:

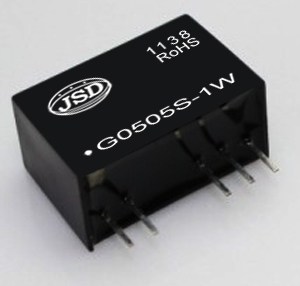

DC-DC CONVERTER pictures:
