6000VDC high isolated&unregulated single output DC-DC converter H series
2012-7-20 21:18:21 Clicks:2244
HIGH ISOLATED&UNREGULATED SINGLE OUTPUT DC-DC CONVERTER H SERIES
FEATURES:
◆ Small size,low cost
◆ SIP PACKAGE
◆ 6KVDC Isolation
◆ Temperature Range -40°C ~ +85°C
◆ No Heat Sink Required
◆ Industry Standard Pinout
◆ RoHS Compliance
◆ Input voltage: 5VDC\9VDC\12VDC\15VDC\24VDC
◆ positive voltage dual output: 5VDC\9VDC\12VDC\15VDC\24VDC
◆ Product Power: 0.1 ~ 2W
APPLICATIONS:
◆ Where the RS-485/RS-232,digital digital isolation dedicated converter.
◆ Where the intelligent control, security facilities, electrical power isolation and transformation of Radio
◆ Where provide dual voltage power supply to op-amp circuit.
◆ Where the voltage of the input power supply is fixed (voltage variation ≤±10%)
◆ Where isolation is necessary between input and output (isolation voltage ≤6000VDC);
◆ Where the regulation of the output voltage and the output ripple and noise are demanded
data download:
PCB layout reference dimension:

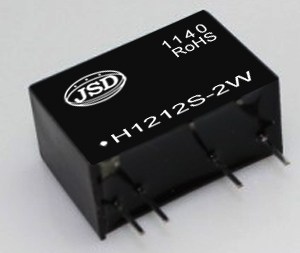

DC-DC CONVERTER pictures:
