    Jie Shengda Technology launched analog passive 4-20mA signal isolation amplifier is divided into three series : passive 4-20mA signal isolation amplifier , passive 4-20mA signal isolated distributor, passive 4-20mA signal isolation conditioner ,they are Jie Shengda Technology launched specially applied two-wire sensor and transmitter device signal distribution , acquisition, conversion , and lossless long-distance transmission.

Now look at the Shengda Technology passive signal isolation amplifier features:
1、two-wire passive 4-20mA isolation amplifier module Model : JSD MI 4~20mA

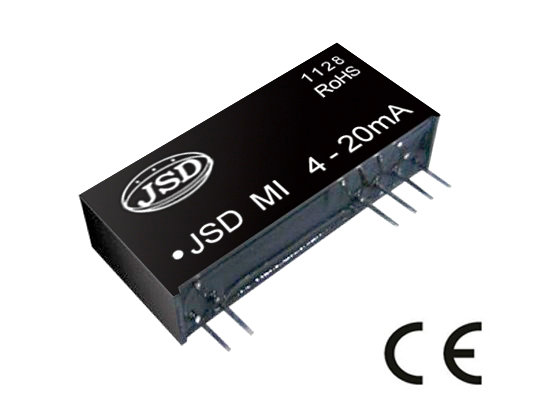

Jie Shengda Technology JSD MI 4-20mA isolation amplifier is a current loop isolated module, the isolation amplifier with wide input voltage (7.5~32VDC), the isolator module input resistance is small, pressure drop<3V, two -wire isolated interface design, pre- input 4-20mA, after stage output 4-20mA, and no working power supply to achieve 4-20mA standard signal with high accuracy and linearity isolation.to achieve signal long-distance transmission without distortion . Product isolation voltage is up to 3KVDC between input and output. The 4-20mA passive isolation amplifier with industrial temperature range : -45~85 ℃, high accuracy class: 0.1%; small size, saving the PCB space, no external peripheral devices can be realized industrial signal isolation converter function, and to achieve long-distance signal transmission without distortion.it is widely used in industrial field signal acquisition isolation, signal long-distance transmission without distortion, power monitoring , medical equipment isolated ground loop interference , inverter, large generators , equipment EMC interference suppression .
Detailed data download: http://www.jsd-iae.com/down/201312921352537.pdf

2、two-wire  passive 4-20mA output loop isolation amplifier distribution module Model : JSD MI 4-20mA-F
    Shenzhen Jie Shengda Technology JSD MI 4-20mA-F isolation amplifier IC is a two-wire loop powered current isolated module,the isolator module IC using electromagnetic isolation technology, and through the output terminal  fed power to the input two-wire control equipment supply power, effective solution to the current signal isolator depends on the power supply to achieve the 4-20mA standard signal isolation and transmission,match with a variety of instrumentation analog input interface (PLC, DCS systems, etc. ); analog signal input with overcurrent protection, can effectively protect the module and post-stage circuit ; Besides, the isolation voltage between input and output is up to 3KVDC . The isolation amplifier  distribution module IC is low cost, small size , SIP12 package with UL94-V0 flame retardant standards, industrial temperature range , suitable for vibration damp industrial environments, it is widely used in industrial field signal isolation , remote long-term transmission without distortion , analog signal ground interference suppression , front-end two-wire equipment power supply , instrumentation and sensor signal transceiver , power monitoring , medical equipment isolation barrier, and so on.
Detailed technical information Download: http://www.jsd-iae.com/down/201312921352537.pdf

3、two-wire  passive 4-20mA isolation amplifier conditioning module   Model : JSD I 4-20mA-P
Jie Shengda Technology JSD OI 4-20mA-P isolation amplifier is a two-wire 4-20mA current isolation conditioner module, which using optical coupling technology ,its anti-jamming capability  is more stronger  than magnetic isolation technology .The isolator IC internal has current signal modulation and demodulation circuit, coupled converter circuits and so on. The isolation conditioner IC's input voltage reaches the wide range (7.5-32V) by small input equivalent resistance to meet the user does not need an external power supply to realize signal long-distance transmission without distortion. The isolation conditioner IC output is design for two-wire power supply loop, matching with the current popular analog input interface  (PC), PLC, DCS or other instrument analog input port. Internal ceramic substrates, printed resistor technology and new isolation technologies make the products’High isolation voltage （3000VDC）and wide industrial temperature, suitable for using Humidity , vibration, harsh environment to meet the requirements of industrial environments.
JSD OI 4-20mA-P product very easy to use, just add a 50KΩ multi-turn potentiometer ADJ correction, you can achieve two-wire 4-20mA signal isolation, transmission and transformation , it is widely used in analog signal data isolation、acquisition，industrial field signal isolation ,long-distance transmission without distortion ,analog signal ground interference suppression and other industrial field.
Detailed data download: http://www.jsd-iae.com/down/20128251122206.pdf
more isolation transmitter, isolation amplifiers, data acquisition module, DC-DC converter technology Download：http://www.jsd-iae.com/DC-DC_Converter.htm
 Isolation amplifiers data download：http://www.jsd-iae.com/Isolation_Amplifiers.htm
Signal isolation transmitter data download：http://www.jsd-iae.com/Isolation_Transmitter.htm
Data acquisition module (A / D converters, IO modules) data download: http://www.jsd-iae.com/Data_acquisition_module.htm
