JSD OI series isolation amplifier is a hybrid integrated circuit which make the input signal isolation amplifier,converting into a DC signal proportional output, the isolation amplifier module front stage is the voltage (current) signal input, Backend is a current (voltage) signal output, Integrated on the same chip a multi-isolated micro-power supply to the internal signal processing circuitry, make the chip achieve three-port isolation(input, output and power supply)JSD OI series isolation amplifier uses optical isolation technology, compared with the magnetic isolation transform has strong anti-interference and anti-high-frequency .
JIE Sheng da Technology JSD OI series isolation amplifiers have PCB board soldering and standard DIN 35mm rail slot fixed installation of two rail mounting can be achieved 1-input-2-output、1-input-3-output、2-input-2-output、3-input-3-output、the user simply by wiring can be used.
Products very easy to use, you can achieve signal isolation and transmission without any external components, The product simplifies the user's design, greatly improves the PCB board space utilization.

Features:
● Low cost、small size、SIP package with UL94-V0 flame retardant standard
● Achieve Zero and gain adjustment by Adding multi-turn potentiometer
● Three-port isolation 2500VDC/60s  between input, output and power supply
● Power supply：5VDC、12VDC、15VDC、24VDC
● 0~5V/0~10V/1~5V/0-100mV/0~20mA/0~10mA/4~20mA etc. voltage or current signal conversion,amplification
● High accuracy:（0.1% F.S,0.2% F.S）；
● Full scale high linearity (non-linearity<0.1%)
● Strong anti-interference and Anti-high-frequency signal interference
● Wide operation temperature (-45~+85℃)
● Passed CE Certificate

Optical isolation amplifier detailed information, please visit:http://www.jsd-iae.com/down/2013924235630791.pdf

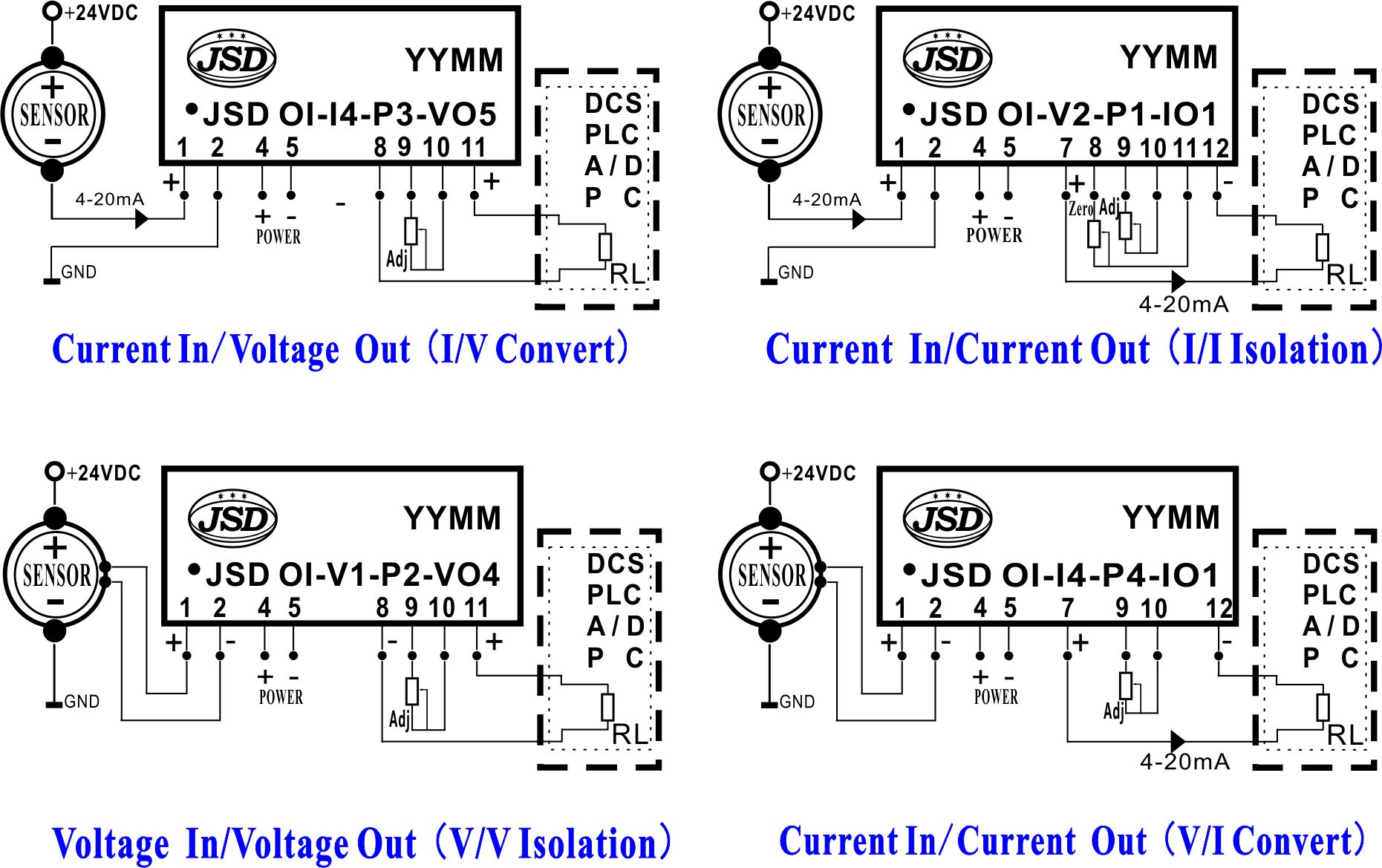

Application diagram:

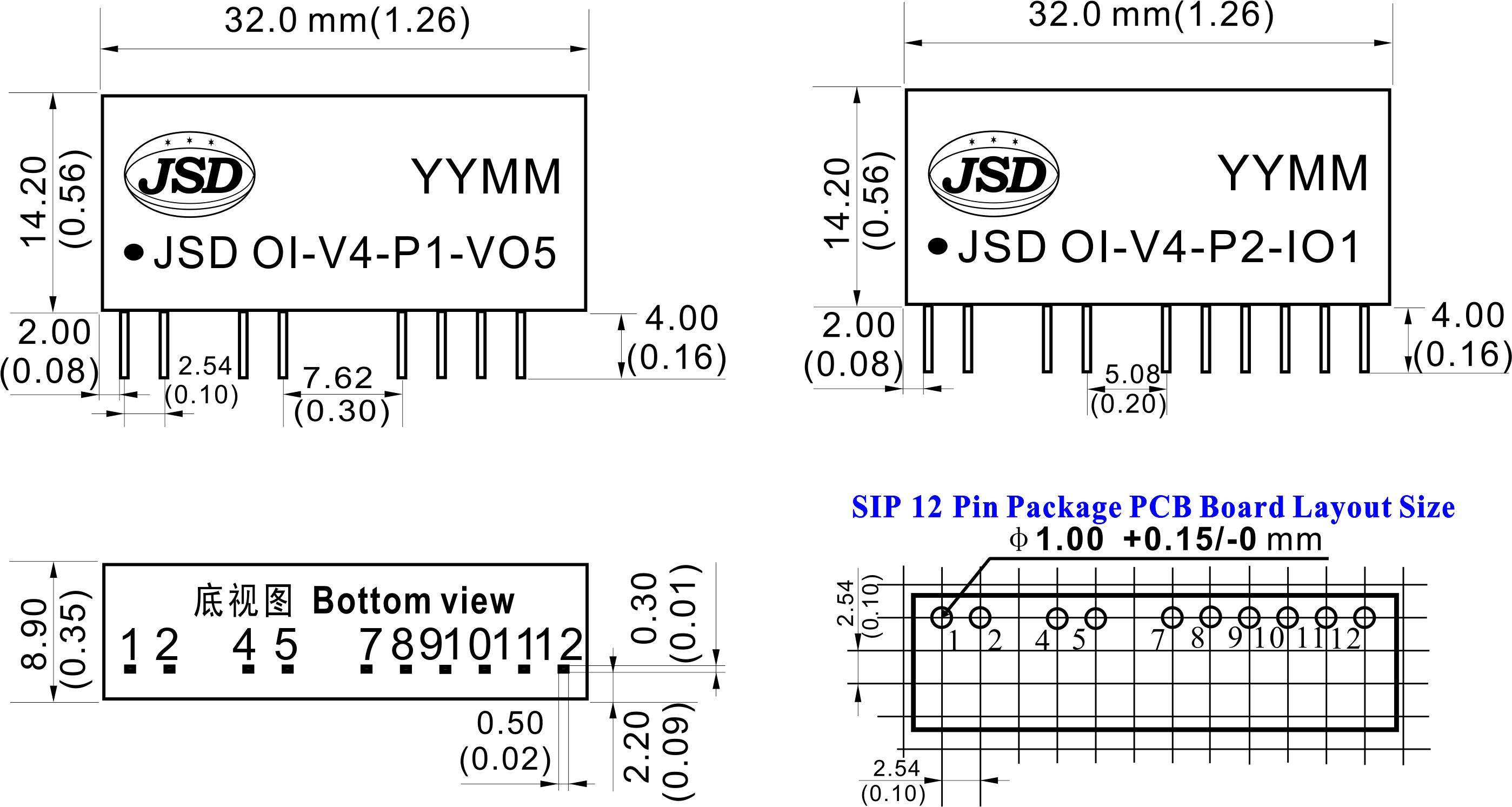

Product Dimensions:

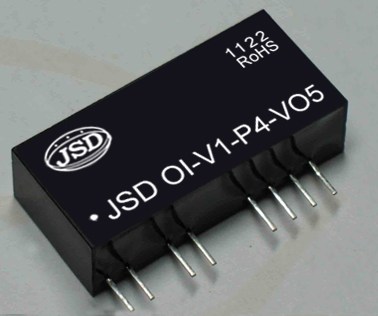

Isolation Amplifiers picture:
