Analog positive and negative bilateral electromagnetic signal isolation amplifier modules IC application figure
2012-9-17 18:56:14 Clicks:2865
Analog positive and negative bilateral electromagnetic signal isolation amplifier modules IC application figure
Jie Shengda Technology is a professional R & D, production and sales together high-tech enterprises, the company's analog bidirectional voltage (current) electromagnetic signal isolation amplifier IC is widely used in:
◆ DC current/voltage signal isolation,conversion and amplification
◆ Industrial field signals long-distance transmission without distortion
◆ Analog signal data isolation acquisition, transmission and amplification
◆ 4~20mA/0~20mA/0~5V/0~10V/0~75mV/0~2.5V/2~10V/0-±20mA/0-±10V sensor signal amplification and transmission
◆ Instrumentation and sensor signal transceiver
◆ Non-power signal isolation and transmission
◆ Power monitoring, medical equipment signal conversion applications
◆ Instrumentation signal isolation acquisition, conversion and amplification
Isolation amplifiers details technical download:

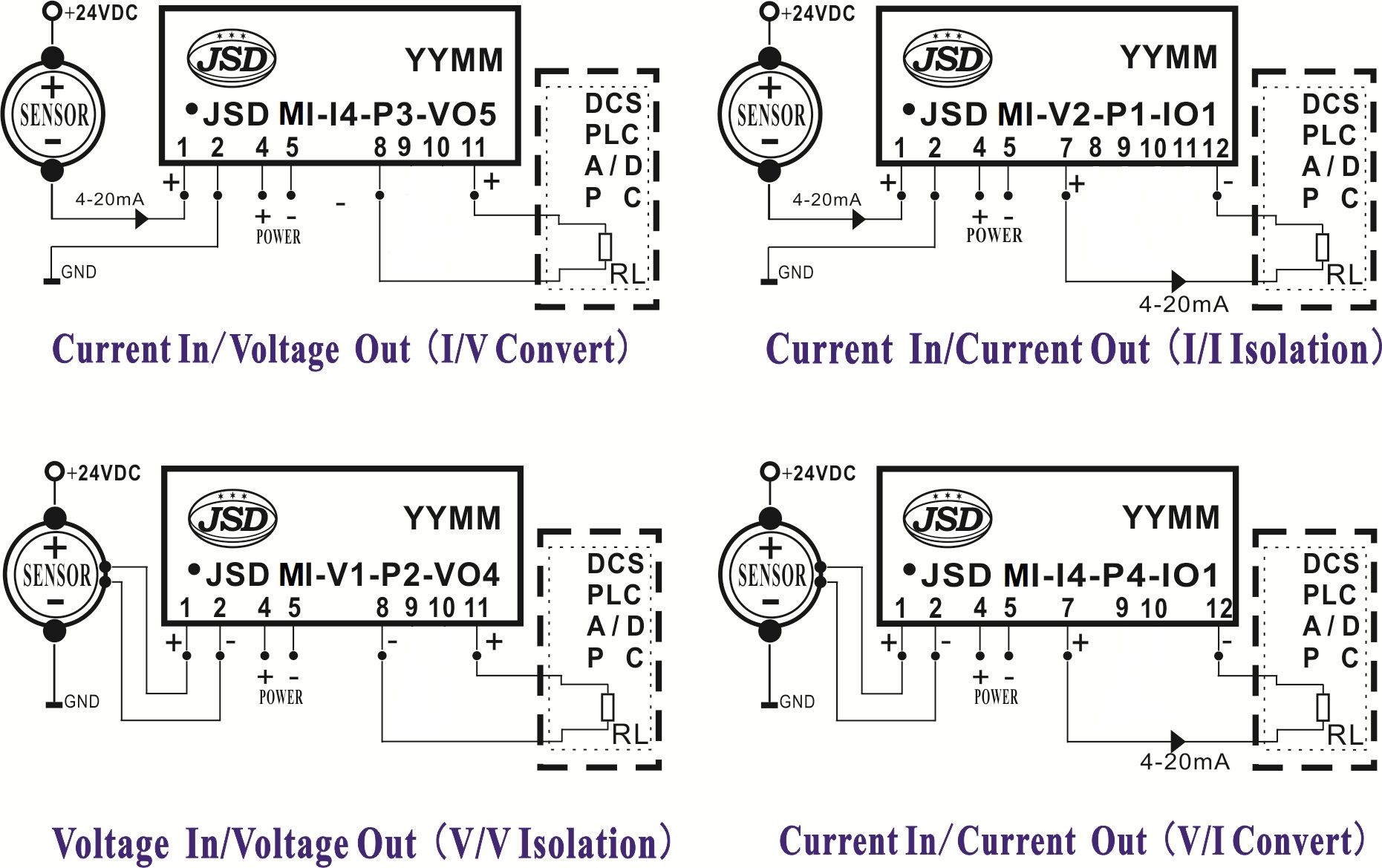

Isolator application wiring diagram:

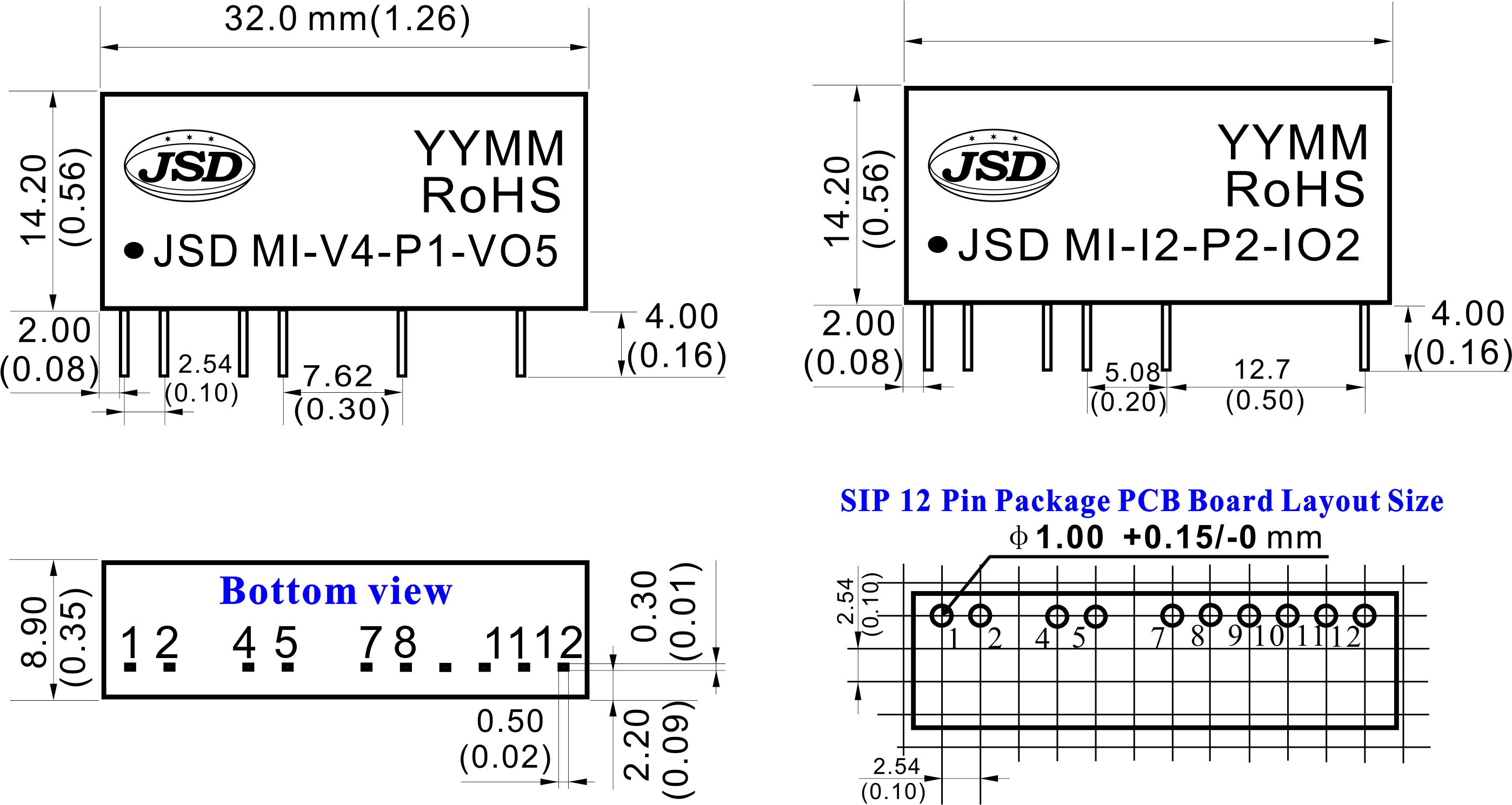

Isolator PCB board size chart and layout diagram :
