Isolation transmitter plays the role of signal acquisition, isolation transform, long-distance transmission,protection field devices.
Isolators has played an important role in industrial acquisition and control system , However what do our company isolator itself characteristics have?
1, low-cost, high-precision, meet UL94-V0 flame retardant standard
2, Power lossless,No heat
3, mutual isolation between signal input, signal output and power supply 4, mutual isolation between channels
5, high-precision (0.1%, 0.2%) High linearity (0.1%)
6, high isolation voltage (3000VDC/60S)
7, international standard signal input and output 0~5V/0~10V/1~5V/0~20mA/4~20mA
8, industrial temperature range: -45 ~ +85 ℃
9, high anti-interference ability, high reliability
10, the international standard DIN35mm rail installation, user-friendly operation

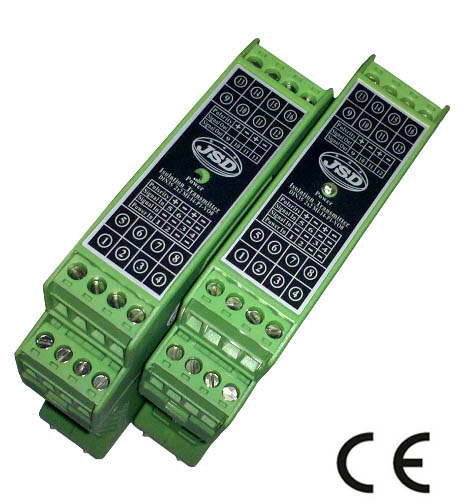

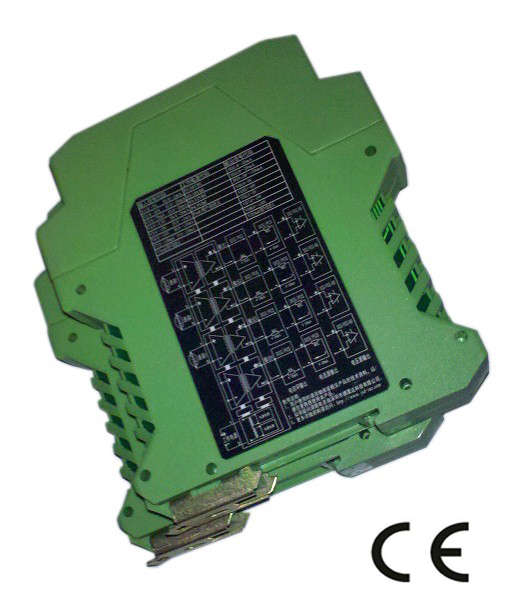

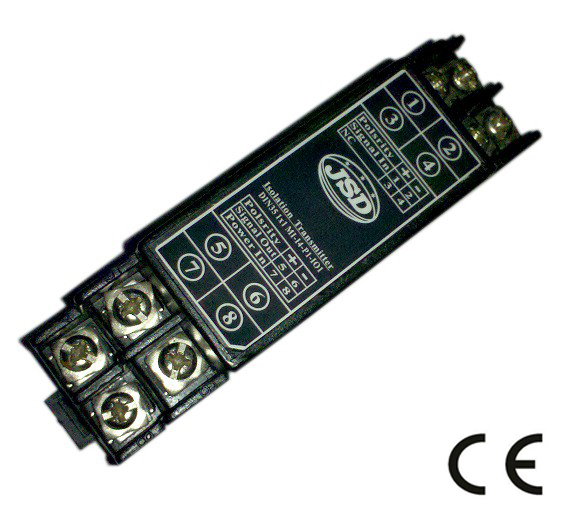

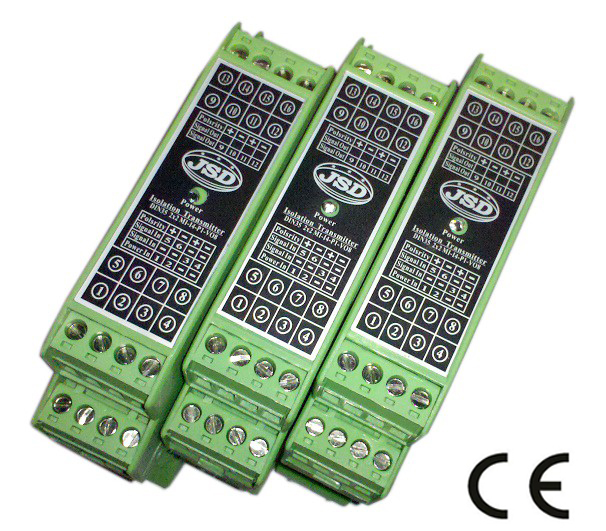

Isolation transmitter pictures:
Jieshengda technology inverter\PLC\DCS\AD\PC acquisition system site dedicated isolation transmitter introduce:
Products (1): Analog two-wire 4-20mA passive isolation transmitter (DIN35 1x1 MI 4-20mA/DIN35 2x2 MI 4-20mA Series)
Jie Shengda Technology analog two-wire 4-20mA passive single/dual channel high-precision analog signal isolation transmitter is a signal conditioner with electrical insulation between input and output, it can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、PLC、PC or DCS system. The product is isolated between input and output , the isolated voltage is up to 3000VDC .It is widely used in the industrial measurement systems, medical electronic equipment, electrical equipment etc. Adopting high efficiency electromagnetism isolation technology to achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift.no working power supply requirement, the international standard DIN35mm rail mounting , the user directly wired and no correction requirement.
data download: http://www.jsd-iae.com/down/201210518421443.pdf
Products ( 2 ) : analog two -wire 4-20mA passive isolation transmitter (DIN35 3x3 MI 4-20mA/DIN35 4x4 MI 4-20mA Series )
Jie Shengda Technology analog two-wire 4-20mA passive three / four -channel high-precision analog signal isolation transmitter transport the international standard 4-20mA analog signal to the control room or PLC, DCS and PC systems . Input , it is mutual isolated between input,output and channels, isolation voltage is up to 3000VDC, the analog signal passive isolation transmitter uses electromagnetic isolation technology , it has the characteristics of high output accuracy ( 0.1% ) , low temperature drift , high linearity , no requirement power supply , the product can be used in harsh industrial environments, international standards DIN35mm rail mounting , the user directly wired without correction .
data download: http://www.jsd-iae.com/down/2012105234315175.pdf
Products (3): one in one out high-precision analog active magnetic signal isolation transmitter (DIN35 1x1 MI-V (I) x-Px-V (I) Ox Series)
Jie ShengdaTechnology one in one out high-precision analog active magnetic signal isolation transmitter input signal is international standard signal,it is mutual isolated between input, output and the power supply, the analog signal isolation transmitter using magnetic isolation technology, it has the characteristics of high output accuracy ( 0.1% ) , low temperature drift , high linearity ,single working power supply , the product can be used in harsh industrial environments, international standards DIN35mm rail mounting , the user directly wired without correction .
data download: http://www.jsd-iae.com/down/20127903535427.pdf
Products ( 4 ) : 1-input- 2-output high-precision anolog active magnetic signal isolation transmitter (DIN35 1x2 MI-V (I) x-Px-V (I) Ox Series )
Jie Shengda Technology 1-input- 2-output high-precision anolog active magnetic signal isolation transmitter is converted and isolated one-way single into two-way output, product mutual isolation between input\ output \ power supply and channels , the product has a very high linearity and accuracy class, no requiring of external components calibration,just wiring can achieve analog signal isolation , acquisition, conversion and amplification.
data download: http://www.jsd-iae.com/down/201277222217627.pdf
Products ( 5 ) :1-input-3-output high-precision anolog active magnetic signal isolation transmitter (DIN35 1x3 MI-V (I) x-Px-V (I) Ox Series )
1-input-3-output high-precision anolog active magnetic signal isolation transmitter is converted and isolated one-way single into three-way output, product mutual isolation between input\ output \ power supply and channels , the product has a very high linearity and accuracy class, , no requiring of zero\gain adjustment and calibration,just wiring can achieve analog signal isolation , acquisition, conversion and amplification.International standard signal input and output ( eg : 0 ~ 5V, 0 ~ 10V, 1 ~ 5V, 0 ~ 20mA, 4 ~ 20mA, 0 ~ ± 5V, 0 ~ ± 10V, 0 ~ ± 20mA , etc. )
data download: http://www.jsd-iae.com/down/201278233925608.pdf
Products ( 6 ) : 1-input-4-output high-precision anolog active magnetic signal isolation transmitter (DIN35 1x4 MI-V (I) x-Px-V (I) Ox Series )
1-input-4-output high-precision anolog active magnetic signal isolation transmitter is converted and isolated one-way single into four-way output, product mutual isolation between input\ output \ power supply and channels , The product has high accuracy, high linearity, high reliable, stable performance, industrial class temperature range, low temperature drift,no requiring of calibration,just wiring can achieve analog signal isolation , acquisition, conversion and amplification,Long-distance transmission without distortion; instrumentation signal reception and transmission.
data download: http://www.jsd-iae.com/down/201278234128227.pdf
Products ( 7 ) : 1-input-2-output high-precision anolog active magnetic signal isolation transmitter (DIN35 2x2 MI-V (I) x-Px-V (I) Ox Series )
Jie Shengda Technology 1-input-2-output high-precision anolog active magnetic signal isolation transmitter is converted and isolated two-way single into two-way output, product mutual isolation between input\ output \ power supply and channels , the product has a very high precision, high linearity,high reliability and stability,international standard analog signal input and output ( eg : 0 ~ 5V, 0 ~ 10V, 1 ~ 5V, 0 ~ 20mA, 4 ~ 20mA , 0 ~ ± 5V, 0 ~ ± 10V, 0 ~ ± 20mA , etc. ),no requiring calibration,just wiring can achieve analog signal isolation , acquisition, conversion and amplification.Long-distance transmission without distortion
http://www.jsd-iae.com/down/201278234359811.pdf
Products ( 8 ) : 3-input-3-output high-precision anolog active magnetic signal isolation transmitter (DIN35 3x3 MI-V (I) x-Px-V (I) Ox Series )
Three -channel input three -channel output high-precision analog active magnetic signal isolation transmitter is converted and isolated three-channel analog signal into three-channel analog signal output ,the product mutual isolation between input\ output \ power supply and each channel ,the product has a very high linearity ,high accuracy class high reliability and stability , the international standard analog signal input and output ( eg : 0 ~ 5V, 0 ~ 10V, 1 ~ 5V, 0 ~ 20mA, 4 ~ 20mA, 0 ~ ± 5V, 0 ~ ± 10V, 0 ~ ± 20mA , etc. ) no requiring calibration,just wiring can achieve analog signal isolation , acquisition, conversion and amplification.Long-distance transmission without distortion,it is widely used in industrial automatic control.
data download : http://www.jsd-iae.com/down/20127902249732.pdf
Products ( 9 ) : Single-channel analog signal to pulse frequency signal (V/F) isolation transmitter (DIN35 1x1 OI-V (I) x-Px-FOx Series )
Single-channel analog signal to pulse frequency signal (V / F) isolation transmitter is to convert and isolate the analog signal into pulse frequency signals. The product is international standard signal input : 0 ~ 5V, 0 ~ 10V, 1 ~ 5V, 0 ~ 20mA, 0 ~ 10mA, 4 ~ 20mA , etc., output standard signal : 0 ~ 5KHz, 1 ~ 5KHz, 0 ~ 10KHz and so on. The isolator products using optical isolation technology , it is isolated between power supply, input and output, the isolated voltage between them is up to 3000VDC.no requiring calibration,just wiring can be used.
data download: http://www.jsd-iae.com/down/201291013157736.pdf
Product (10): single-channel electronic device, resistance signal (displacement signal)、angle sensor dedicated isolation transmitter (DIN35 1x1 OI-Rx-Px-V (I) Ox Series)
single-channel electronic device, resistance signal (displacement signal)、angle sensor dedicated isolation transmitter acquisition, isolate, amplifie and converte the Input resistance, linear electronic scale, angular displacement sensor signal into analog signals and in the form of standard analog signal or a user-specified particular analog signal is transmitted to the control room, PLC, PC, and DCS systems.international standard signal output:0~5V、0~10V、1~5V、0~20mA、0~10mA、4~20mA Etc.Using optical isolation technology, The product is isolated between power supply, input and output, the isolated voltage between them is up to 3000VDC.no requiring calibration,just wiring can achieve signal isolation , conversion and long-distance transmission
data download: http://www.jsd-iae.com/down/201211616320737.pdf
Product (11): Single-channel thermal resistance (PT10, PT100, PT1000, Cu50, Cu100) temperature signal isolation transmitter (DIN35 1x1 OI-TRZ-T-Px-V (I) Ox Series)
Single-channel RTD temperature signal isolation transmitter integrates a set of multi-channel high-isolated DC / DC power supply, a few high-performance signal isolators and RTD linearization, long-term compensation, interference suppression circuit, the product is international standard output signal: 0 ~ 5V, 0 ~ 10V, 1 ~ 5V, 0 ~ 20mA, 0 ~ 10mA, 4 ~ 20mA and so on. The thermal resistance temperature signal isolation transmitter uses optical isolation technology, so that the product can achieve high isolation voltage 2500VDC, SMD chip technology and modular design, so that products can work in harsh industrial environments, improved product reliability and stability.
data download: http://www.jsd-iae.com/down/201272122012530.pdf
Product (12): single-channel analog signals to RS-232/485 digital signal isolation acquisition module (JSD AD11 series)
JSD AD11 series products realize the signal acquisition between sensor and host, to measure analog signals.JSD AD11 series products can be applied to RS-232/485 bus industrial automation control system, 4-20mA / 0-5V signal measurement, monitoring and control , 0-75mV ,0-100mV and other small-signals measurement and signals isolation and long-term industrial transmission and so on.
data download: http://www.jsd-iae.com/down/2012919215852347.pdf
Product (13): single-channel RS-232/485 digital signal to Dual-channel analog signal acquisition module (JSD DA-A02 series)
JSD DA-A02 series products realize the signal acquisition between sensor and host, to measure analog signals. JSD DA-A02 products can be applied to RS-232/485 bus industrial automation control system, 4-20mA/0-20mA/0-5V/0-10V signal output to control execution devices, control devices, and display instruments in the industrial field.all of the users set configuration information such as Calibration value, address, baud rate, data format, checksum and status are stored in non-volatile memory EEPROM.
JSD DA-A02 series products according to industry standard design and manufacture .They are three-port isolation(input, output and power supply),and the isolation voltage between them is up to 3000 VDC, JSD DA-A02 series products have better Anti-interference ability, high reliability and wide operating Temperature Range (- 45℃～+85℃。)
data download : http://www.jsd-iae.com/down/2012731112254.pdf

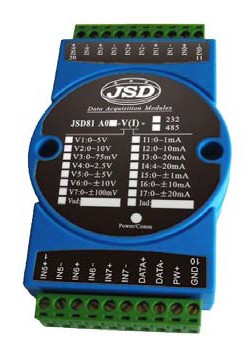

Product (14): 8-ch Analog Signal toRS485/232 data acquisition A / D converter module (JSD81 A08 series)
Products include power supply isolation, signal isolation, linearization, A/D conversion and RS-485 serial communication. Each serial interface can connect up to 255 pieces.JSD81 A08 Series modules, communication using ASCII code or MODBUS RTU communication protocol, and its instruction set compatible with the ADAM modules, baud rate can be set by the code, with other manufacturers control module hang in the same RS-485 bus for easy programming.
data download : http://www.jsd-iae.com/down/201257135150745.pdf
