Analog voltage/current signal isolation amplifier module IC application wiring diagram

2012-9-18 17:55:27  Clicks:2769                   Analog voltage/current signal isolation amplifier module IC application wiring diagram
Jie Shengda Da Technology Co., Ltd. is a high-tech enterprises with professional R&D, production and sales, the company's analog voltage (current) signal isolation amplifier modules with small size, low cost, SIP12-pin package, high accuracy, high isolation voltage features.
The isolation amplifier module IC widely used in:
◆ DC current/voltage signal isolation,conversion and amplification
◆ industrial field signals long distance transmission without distortion
◆ Analog signal data isolation acquisition, transmission and amplification
◆ 4~20mA/0~20mA/0~5V/0~10V/0~75mV/0~2.5V/2~10V sensor signal amplification and transmission
◆ instrumentation and sensor signal transceiver
◆ non-power signal isolation and transmission
◆ power monitoring, medical equipment signal conversion applications
◆ instrumentation signal isolation acquisition, conversion and amplification
Isolation amplifier detail data:http://www.jsd-iae.com/down/2013924235630791.pdf

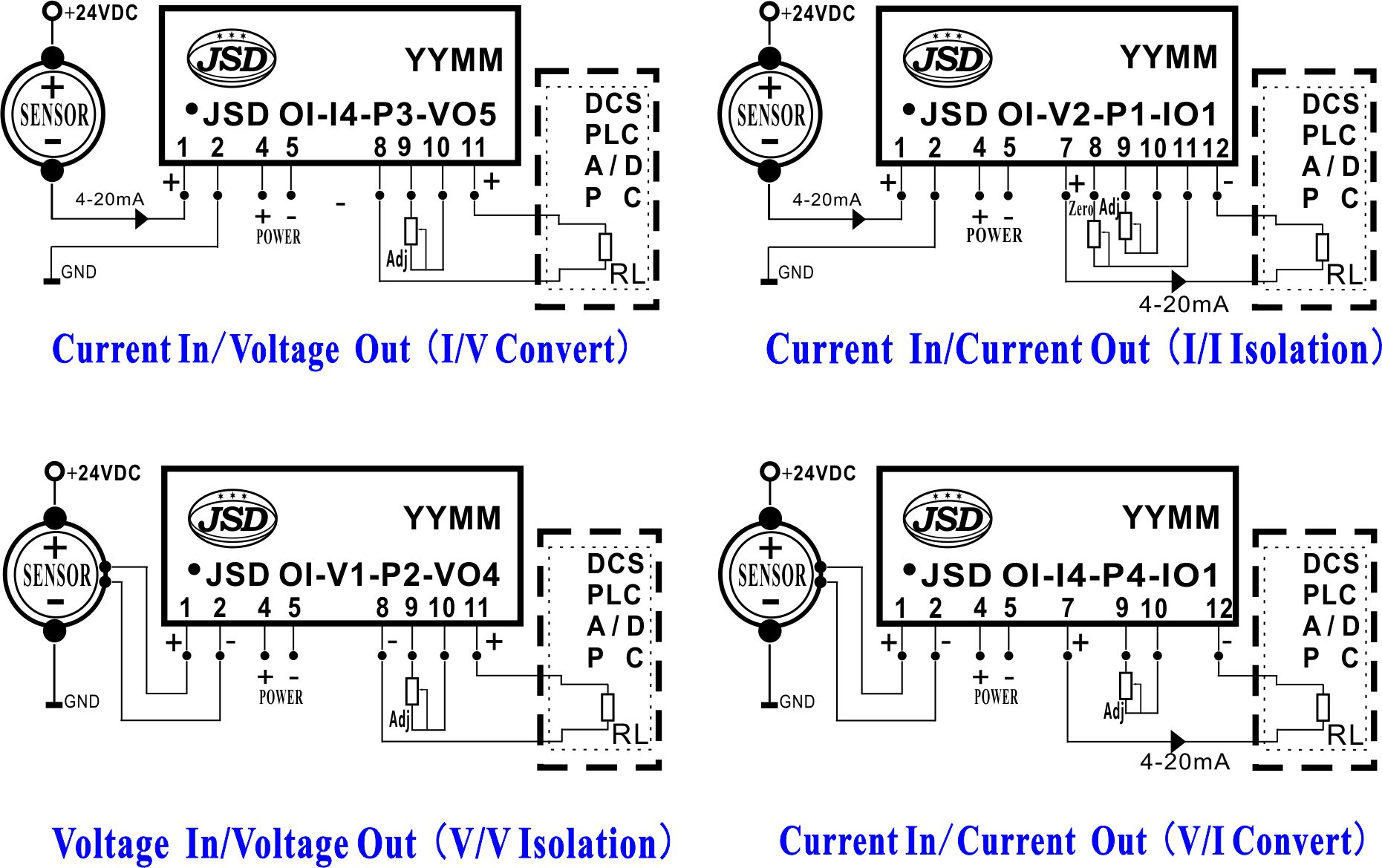

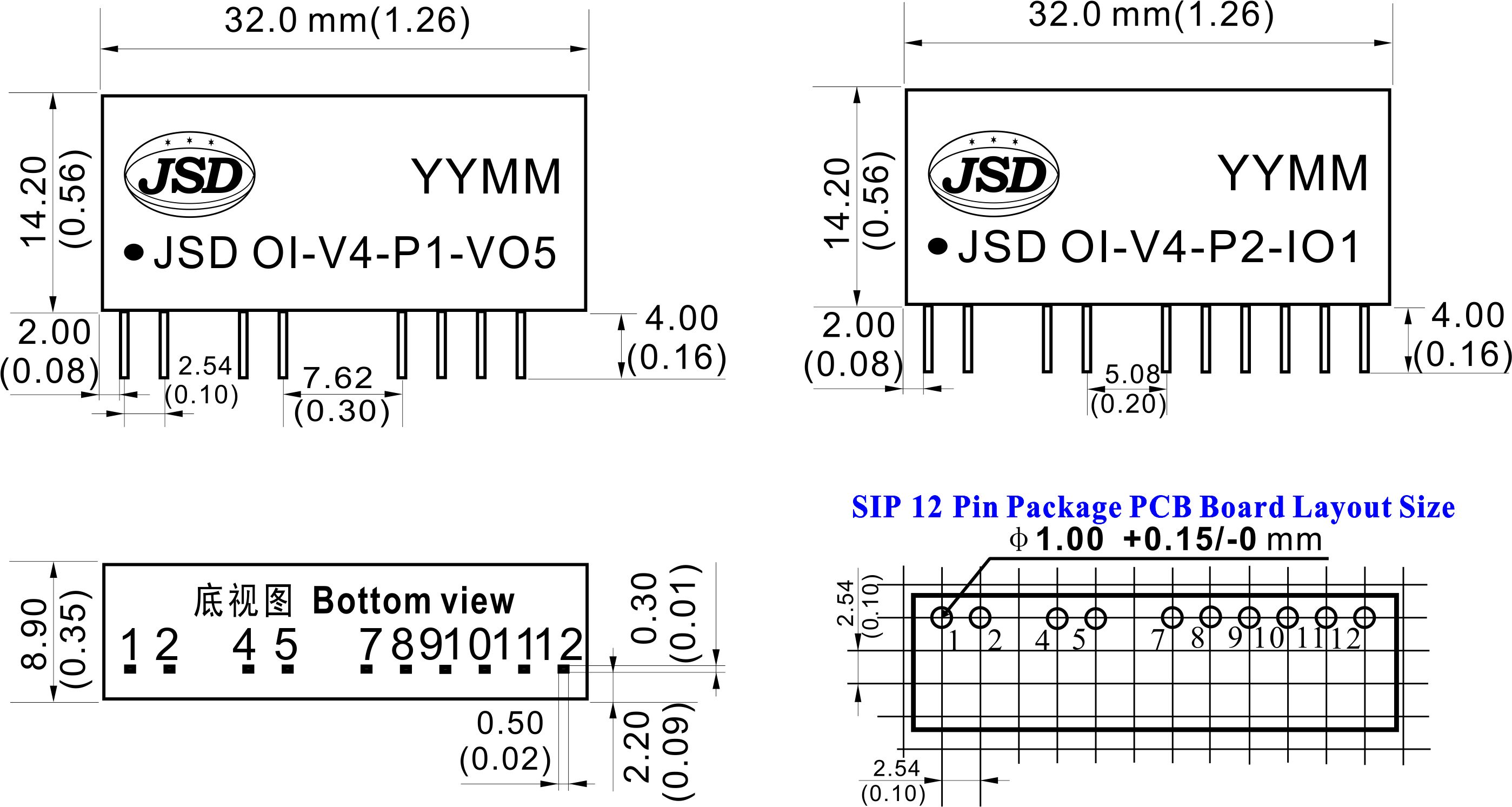

Wiring and PCB board layout diagram:
