V/F(I/F) Frequency pulse signal converter wiring applications

Jie Shengda Technology single-channel V/F frequency pulse signal isolation transmitter (V/F converter) wiring applications



Jie Shengda Technology DIN35 1x1 OI-V(I)x-Px-FOx series single-channel analog to frequency signal isolation transmitter is a precision isolation transmitter.it can isolate and transform the inputting analog  voltage (or current) signal into corresponding digital pulse frequency . The product is isolated between power supply, input, output and isolated power, the isolated voltage between them is up to 2500VDC. The isolation transmitter is widely used in phase modulation, frequency modulation, analog/digital conversion, digital voltmeter, data measurement and remote telemetry remote control device. The product has been corrected, the transmitter isolation adopts international standard DIN35mm rail installation, the user can be installed directly. If the product fails to meet user, we provide customized.



Jie Shengda Technology single-channel V/F frequency pulse signal isolation transmitter (V / F converter) output wiring have two designs: one is 5 V voltage pulse output, another is open collector output

Application wiring diagram is as follows:

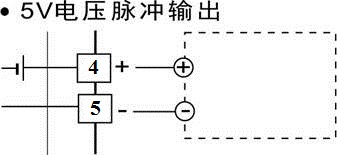

1、5V voltage pulse output

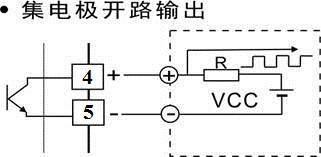

2、open collector output





V/F converter features:

● Low cost, international standards DIN35mm rail mounting

● three-port isolation (input, output and power supply )

● High accuracy (0.1% F.S, 0.2% F.S)

● High linearity (0.1% F.S)

● High isolation voltage (2500VDC/60S)

● Low temperature drift (35PPM/ ℃)

● Wide industrial class operation temperature (-45~+85℃)

● High reliability (MTBF>50 Wan hour)

● Power supply (5VDC/12VDC/15VDC/24VDC single power supply options)

● International standard signal input (0~5V/0~10V/1~5V/4~20mA/0~20mA etc. optional)

● Standard signal input （0~5KHz/0~10KHz/1~5KHz etc. optional）

● Passed CE Certificate

V/F frequency pulse signal converter download：http://www.jsd-iae.com/down/201291013157736.pdf
