1-input-1-output two-wire 4-20mA loop analog signal isolation transmitter wiring diagram
2013-8-27 21:56:24 Clicks:1101
1-input-1-output two-wire 4-20mA loop analog signal isolation transmitter wiring diagram
Jie Sheng Da Technology 1-input-1-output two-wire 4-20mA loop analog signal isolation transmitter with the features of small size, low cost, high accuracy, easy to install, the international standard 4-20mA signal input and output, isolation voltage up to 3000VDC or more.this analog signal isolation transmitter needn't operating power supply, free adjustment,
international standards DIN35mm rail installation, easy to use.
Isolation transmitter model: DIN35 1X1 MI 4-20mA
Signal isolation transmitter wiring diagram:
Download: http://www.jsd-iae.com/down/2013108141438917.pdf
Other series isolation transmitter Download: http://www.jsd-iae.com/Isolation-Transmitter.htm

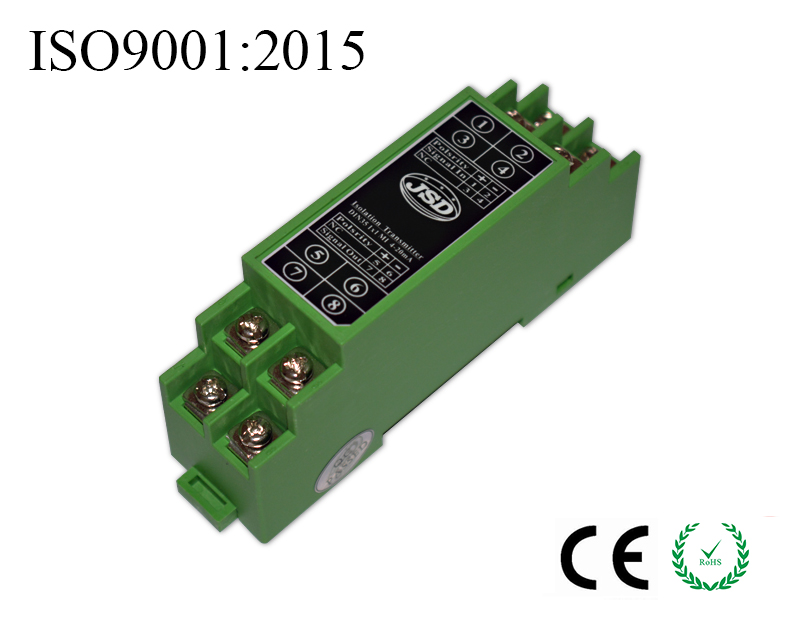

Signal isolation transmitter physical picture:
