JSD launched pressure strain bridge Analog Isolation Amplifier Module IC

                        JSD launched pressure strain bridge Analog Isolation Amplifier Module IC
Features:
● Low cost, small size, DIP24 package meet UL94-V0 flame retardant standard
● just add multi-turn potentiometer to achieve zero and gain adjustment
● Power supply, signal input, signal output three 2500VDC isolation between
● Power Supply: 5V, 12V, 15V, 24V DC single power supply, etc.
● 0~2mV/0~10mV/0~20mV/0~±10mV/0~±20mV/0~100mV differential voltage signal input, etc., conversion and amplification
● Set the pressure, tension, gravity sensor signal is converted into an international standard 4-20mA/0-20mA/0-10V/1-5V/0-5V/0- ± 5V/0- ± 10V and other current and voltage signals
● can be sent to the pressure strain bridge sensors provide a reference voltage 5VDC or 10VDC
● Accuracy class: 0.1, 0.2;
● Full range of high linearity (non-linearity <0.1%)
● There is a strong anti-interference and high frequency EMC electromagnetic interference characteristics of signal space
● Industrial temperature range: -45 ~ +85 ℃
Applications:
● weighing sensor signal acquisition amplification and conversion
● Analog signal ground interference suppression and signal isolation, acquisition and remote
● industrial field signal transmission distance without distortion
● non-power signal transmission
● power isolation monitoring industrial site
● Analog signal data isolation, acquisition and conversion
● industrial field signal isolation and conversion, and remote transmission without distortion
● EMC electromagnetic interference overcome industrial site
● Various sensor interface match (acquisition, amplification, remote)
General description:
Jie Sheng Technology JSD OI-Bx-Px-V (I) Ox Series Pressure Strain bridge isolation amplifier is a differential signal isolation is amplified, converted into a proportional DC signal output hybrid integrated circuit, the pressure strain bridge isolation amplifier IC can be pre-set to the pressure sensor provides an efficient micro-power isolated reference voltage source, after the class is an international standard current (voltage) signal output, the chip integrates a micro-power multi-channel isolated power supply to the internal signal processing circuitry, the signal input, power supply, power output and distribution of mutual isolation. Isolation voltage up to 2500VDC above, JSD OI-Bx-Px-V (I) Ox series isolation amplifier photoelectric isolation technology, compared to the magnetic isolation transform EMC appliance strong anti-interference and high frequency signal space electromagnetic interference characteristics, product widely used in electrical, instrumentation, medical equipment, weighing instruments, industrial automation and other industries.
JSD OI-Bx-Px-V (I) Ox series isolation amplifier products are PCB board soldering and standard DIN 35 rail slot fixed installation of two rail mounting can achieve an analog signal into a function, the user after purchase Simply by product technical data wiring can be convenient and user-friendly installation.
JSD OI-Bx-Px-V (I) Ox series isolation amplifier is easy to use, just add two multi-turn potentiometer to adjust, you can achieve the industrial field signal isolation conversion function, and to achieve long-term lossless signal transmission. The product simplifies the user's design, greatly improves the PCB board space utilization.

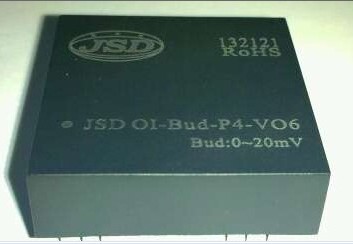

Picture:

Model example:

Example 1: Input signal: 2mV/V Distribution 5VDC; output signal :0-5V; Working power: 5VDC; Model: JSD OI-B1-P4-VO4

Example 2: Input signal :0-20mV; Output signal :4-20mA; Operating Power: 24VDC; Model: JSD OI-Bud-P1-IO1

Example 3: Input signal :0-100mV; output signal :0-20mA; Operating Power: 24VDC; Model: JSD OI-B6-P1-IO2
