Jie Shengda Technology launched analog signal isolation amplifier transmission module IC

                          Jie Shengda Technology launched analog signal isolation amplifier transmission module IC

Jie ShengdaTechnology in order to better serve the industrial automation control system and automated aquisition system, specially launched a modular isolation amplifier used in instrumentation, medical electronics industry  , the isolation amplifier module uses optical isolation technology, and the isolation voltage is up to 3000 VDC for better protect a variety of instrumentation equipment for safe operation.

Features:
◆ low cost, small size, SIP Package meet UL94-V0 flame retardant standard
◆ Zero and gain adjustment by adding a multi-turn potentiometer
◆ Three-port isolation(input, output and power supply)
◆  Isolation voltage:2500VDC
◆ Power supply: 5VDC, 12VDC, 15VDC, 24VDC, etc.
◆ 0 ~ 5V / 0 ~ 10V / 1 ~ 5V / 0 ~ 20mA / 0 ~ 10mA / 4 ~ 20mA signals    conversion or amplification
◆ Accuracy class: 0.1%, 0.2%;
◆ full scale high linearity (non-linearity <0.1%)
◆ strong anti-interference and Anti-high-frequency signal interference
◆ Industrial temperature range: -45 ~ +85 ℃

Applications:
◆ DC current / voltage signal isolation, conversion and amplification
◆ analog signal ground interference suppression and analog isolation, collecting
◆ 4 ~ 20mA / 0 ~ 20mA / 1 ~ 5V / 0 ~ 5V / 0 ~ 10V sensor signal isolation and conversion function
◆ instrumentation and sensor signal transceiver
◆ power isolation and control of industrial site
◆ analog signal data isolation, acquisition and conversion
◆ industrial field signal isolation and conversion, and remote transmission without distortion
◆ power monitoring, medical equipment isolation barrier

General Description:
JSD OI series isolation amplifier is a hybrid integrated circuit which make the input signal isolation amplifier, converting into a DC signal proportional output, the isolation amplifier module front stage is the voltage (current) signal input, Backend is a current (voltage) signal output, Integrated on the same chip a multi -isolated micro-power supply to the internal signal processing circuitry, make the chip achieve three-port isolation(input, output and power supply),and the isolation voltage between them is up to 2500 VDC,  JSD OI series isolation amplifier uses optical isolation technology, compared with the magnetic isolation transform has strong anti-interference and  anti-high-frequency .

Details download:http://www.jsd-iae.com/down/201278232136915.pdf

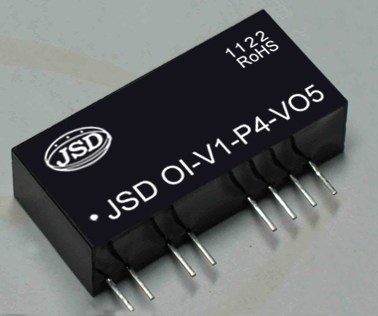

picture:
