Jie Sheng Da Technology(JSD Technology)New launched:2-in-2-out high-precision analog signal isolation transmitter

Jie Sheng Da Technology(JSD Technology)New launched: 2-in-2-out high-precision analog signal isolation transmitter
GENERAL DESCRIPTION:
Jie Sheng Technology DIN35 2x2 MI-V(I)x-Px-V(I)Ox  active precision isolation transmitter is a Signal Conditioner with electrical insulation between input and output,It can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、 PLC、PC or DCS. The product is isolated between power supply, input and output, the isolated voltage between them is up to 2500VDC .It is widely used in the industrial measurement systems, medical electronic equipment, electrical equipment etc. Adopting high efficiency electromagnetism isolation technology to achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift.  Suitable for using in vibration, damp industrial field, the standard DIN35mm rail mounting for easy user installation.
Features:
● Small size, low cost, international standards DIN35mm rail mounting
● three-port isolation (input, output and power supply )
● Products through the EU CE certification
● Have LED power indicator, power supply reverse polarity protection
● 2-input- 2-output ,isolated between channels
● High accuracy (0.1% F.S, 0.2% F.S)
● High linearity (0.1% F.S)
● High isolation voltage (2500VDC/60S)
● Low temperature drift (35PPM/℃)
● Wide Industrial class operation temperature (-45~ +85℃)
● High reliability (MTBF> 50 Wan hour)
● Power supply (5VDC/12VDC/15VDC/24VDC single power supply options)
● International standard signal input and output (0~5V/1~5V/0~10V/0~±10V/4~20mA/0~±20mA/0~100mV etc. optional)

details download：http://www.jsd-iae.com/down/201278234359811.pdf

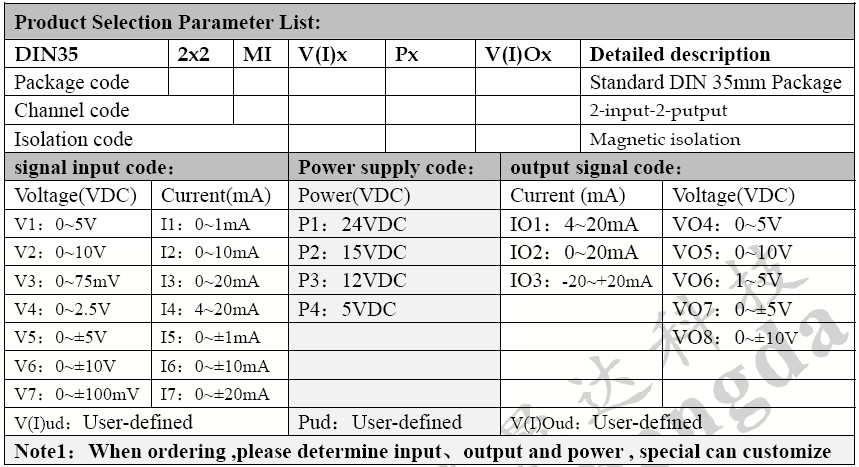

Selection Example:
Example 1: Signal input 1：4-20mA；Signal input 2：4-20mA；output 1:4-20mA； output 2:4-20mA；power supply:24VDC； Model：DIN35 2x2 MI-I4-P1-IO1
Example 2：Signal input 1：0-10VDC；Signal input 2：0-10VDC；output 1:0-5VDC；output 2:0-5VDC；power supply：15VDC；Model：DIN35 2x2 MI-V2-P2-VO4
