Jieshengda technology launched International standard DIN35mm AC to DC isolated power
2013-3-26 22:37:42 clicks:2603
JSD launched International standard DIN35mm AC to DC isolated power
Jie Shengda Technology according to market demand, launched DIN35mm rail AC220V to DC 24VDC/1A isolated power series products ,it has passed CE certification, UL certification. The products are widely used in industrial automation, a variety of regulated power supply occasion, secondary instrument power supply , PLC, DCS systems and security equipment , petrochemical and other industries.
Regulated & isolated power supply has the following features:
1, input range : AC: 90 ~ 264V, DC is : 120 ~ 380VDC
2 , frequency : 47 ~ 63Hz
3 , the international standard DIN35mm rail mounting
4, SMD placement process design, power density
5 , small size, meet UL94-V0 flame retardant standard design
6, the output power up to 24W
7 , high output accuracy ± 0.1%
8, the output voltage of 24VDC, 12VDC, 5VDC variety of options
9, the industrial temperature range ( -20 to +85 )
10 , the output ripple is 150mVp-p
11 , the efficiency up to 85 % or more
12 , with power indicator light
13, the output range is adjustable
14 , output with short circuit protection

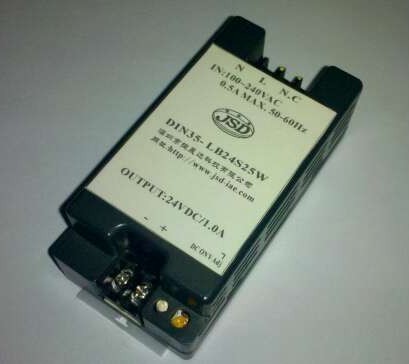

Product model NO: DIN35-LB24S25W
Technical details in the finishing process, please contact our Marketing Department , or call our seller 0755 -28,099,259
picture:
