General description:
   Jie Sheng Da Technology DIN35 2x2 OI active 2-input-2-output analog signal isolation transmitter is a signal conditioner with relectrically insulated between input and output,it can receive a variety of analog signal from the field instrument and a standard output signal or user-specified analog signal to the control room , PLC, PC and DCS systems.the product is isolated beteewn the input ,output and power supply,the isolating voltage between them is up to 2500VDC. it is widely used inIndustrial control power isolation site, power monitoring, medical electronic equipment, analog signal isolation and collection ,etc.The analog signal isolation transmitter adopting the new optocoupler isolation technology, than the magnetic isolation transmitter has a stronger anti- EMC electromagnetic interference, free gain and zero adjustment ,low temperature drift, good linearity,suitable for using vibration, damp industrial field , the international standard DIN35mm rail mounting,easy to install.

Features and Applications:
● thin volume , low-cost international standards DIN35mm rail mounting
● Multiport isolation ( input, output, power supply and mutual isolation between channels )
● Working with a high-brightness LED power indicator
● Power Supply with reverse polarity protection
● The isolation transmitter pass the EU CE certification
● High accuracy (0.1% F.S, 0.2% F.S)
● Full scale range (<0.2% F.S)
● High isolation voltage (2500VDC/60S)
● Low temperature drift (100PPM/℃)
● Industrial level temperature range (-45~+85 ℃)
● High reliablity (MTBF> 50 Wan hour)
● Operating power supply is multiple options (5VDC/12VDC/15VDC/24VDC)
● International standard signal selection (0~5V /0~10V /1~5V/0~20mA/4~20mA)
● Small size : 115mmx100mmx23mm
● DC current/voltage signal isolation , conversion and amplification
● Industrial field signal isolation and remote transmission without distortion
● Analog signal ground interference suppression and analog isolation , acquisition, conversion and remote transmission
● 4 ~ 20mA/0~20mA/0~5V/0~10V sensor signal isolation , transformation and remote convey
● Instrumentation and sensor signal transceiver
● power isolation monitoring industrial site
● power monitoring , medical equipment ,isolation barrier
● Overcome various kinds interference between devices and analog signal acquisition, isolation, transformation and remote transmission

Download :http://www.jsd-iae.com/down/2012122521333967.pdf

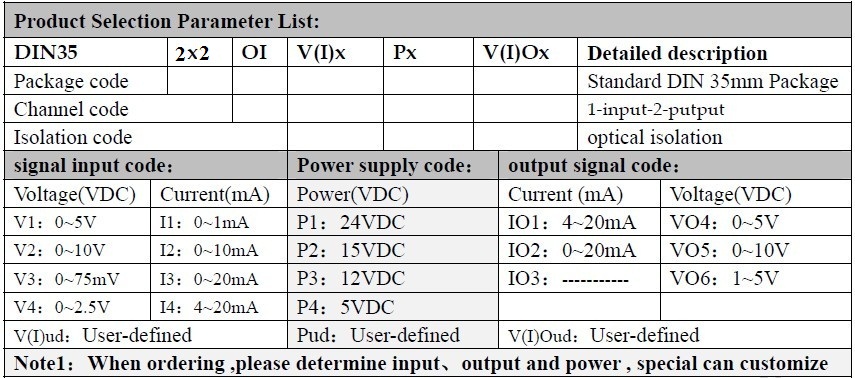

Signal isolation selection list:

Selection example:

Example 1: Input 1:0-20mA; Input 2:0-20mA; Output 1:4-20mA; Output 2:4-20mA; operating power supply: 24VDC;model: DIN35 2x2 OI-I3-P1-IO1

Example 2: Input 1:0-5VDC; input 2:0-5VDC; output 1: 0-10VDC; output 2: 0-10VDC;operating power supply: 5VDC;model: DIN35 2x2 OI-V1-P4-VO5
