General description:
     Shenzhen Jie Sheng Da Technology DIN35 1x3 OI-V(I)x-Px-V(I)Ox active 1-input-3-output unidirectional analog signal isolation transmitteris a signal conditioner with relectrically insulated between input and output,it can receive a variety of analog signal from the field instrument and a standard output signal or user-specified analog signal to the control room , PLC, PC and DCS systems.the product is isolated beteewn the input,output and power supply,the isolating voltage between them is up to 2500VDC. it is widely used in industrial control power isolation site, power monitoring, medical electronic equipment, analog signal isolation and collection ,etc.The analog signal isolation transmitter adopting the new optocoupler isolation technology, than the magnetic isolation transmitter has a stronger anti- EMC electromagnetic interference, free gain and zero adjustment ,low temperature drift, good linearity,suitable for using vibration, damp industrial field , the international standard DIN35mm rail mounting,easy to install.

Features and Applications:
● 1-input-3-output,mutual isolation between channels
● Products pass the EU CE certification
● Power supply with reverse polarity protection
● High brightness LED power indicator
● High accuracy (0.1% F.S, 0.2% F.S)
● Full scale range (<0.2% F.S)
● High isolation voltage (2500VDC/60S)
● Very low temperature drift (100PPM/℃)
● Industrial temperature range (-45~+85℃)
● product performance and reliable (MTBF> 50 Wan hour)
● Operating power supply is multiple options:(5VDC/12VDC/15VDC/24VDC)
● International standard signal selection (0~5V/0~10V/1~5V/4~20mA multiple choice )
● DC current/voltage signal isolation , conversion and amplification
● Industrial field signal isolation and long distance transmission without distortion
● Analog signal ground interference suppression and analog isolation , acquisition, conversion , and remote transmission
● 4~20mA/0~20mA/0~5V/0~10V sensor signal isolation , transformation and remote transmission
● Instrumentation and sensor signal transceiver
● Power isolation monitoring industrial site
● Power monitoring , medical equipment ,isolation barrier
● Overcome interference between instrumentation equipments

Download: http://www.jsd-iae.com/down/20127111532251.pdf

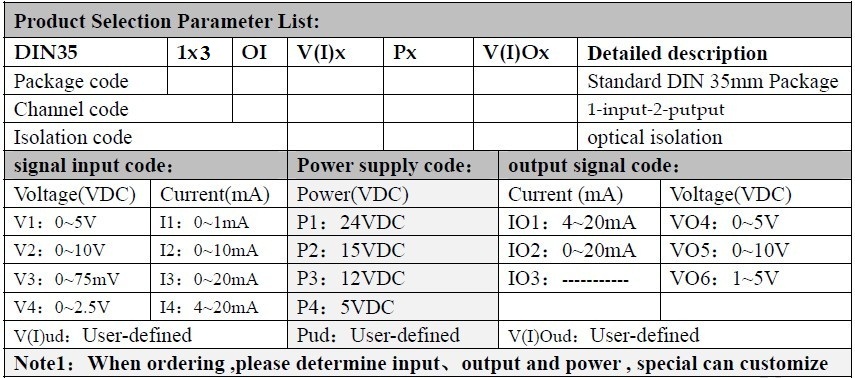

Signal isolation selection list:

Selection example :
Example 1: input 1:4-20mA; output Channel 1:4-20mA; output 2:4-20mA; output 3:4-20mA; operating power supply: 24VDC;model: DIN35 1x3 OI-I4-P1 -IO1
Example 2: input 1:0-10VDC; output 1:0-5VDC; output 2:0-5VDC; output 3:0-5VDC; operating power supply: 12VDC; model: DIN35 1x3 OI-V2 -P3-VO4
